TPS2420/ about Ifolt and Iout dispersion

Tsukui Yusuke

Guru 21930 points

Hi,

Could you tell me about TPS2420 dispersion?

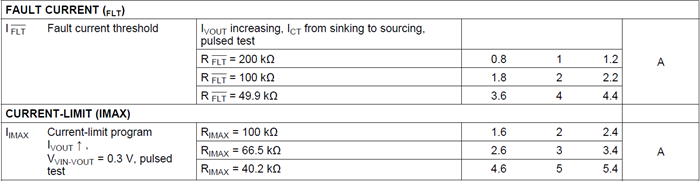

The following word have been described in the data sheet

Whether the current limit values and the default value has the relevance?
Does this device have a different variation characteristic?
For example,
Does Current limit=4.5A Fault current=4.4A type device exist?
Customers are concerned that the value of Falt and Current Limit is approximate value.

E-mail adress : tsukui-y@clv.macnica.co.jp .

Best Regards,
Yusuke/Japan Disty

over 9 years ago

0 Eric Wright over 9 years ago

TI__Mastermind 42795 points

Hi there. I am moving this to the load switch forum.

0 Venkata Nandam over 9 years ago

TI__Intellectual 2800 points

Hi Yusuke-san,

I'll check the designer of this device and let you know.

If both current limits track, there should not be existence of such device. If they are not, there is a possibility.

Regards,
Venkat

0 Venkata Nandam over 9 years ago in reply to Venkata Nandam

TI__Intellectual 2800 points

Hi Yusuke-san,

Both the current limits track each other. I would recommend selecting ILIM sufficiently higher than IFAULT.

Regards,
Venkat

0 Tsukui Yusuke over 9 years ago in reply to Venkata Nandam

Guru 21930 points

Venkat-san
Thank you for your kind support.
I understand　and　I will report it to the customer.

Best Regards,
Yusuke/Japan Disty

0 Tsukui Yusuke over 9 years ago in reply to Venkata Nandam

Guru 21930 points

Venkat-san,

Thank you for your support.
Let me ask you one more thing about case-1.
Please check the attached file.
TPS2420 about case1.pdf
If the current exceeds again Ifult during discharge,
Device stops discharge, and does device recharge it again?

Best Regards,
Yusuke/Japan Disty

0 Tsukui Yusuke over 9 years ago in reply to Tsukui Yusuke

Guru 21930 points

Venkata-san,

Can I get the information?
If you need more information or if I should clarify my comment ,
please let me know.

Best Regards,
Yusuke/Japan Disty

0 Venkata Nandam over 9 years ago in reply to Tsukui Yusuke

TI__Intellectual 2800 points

Hi Yusuke-san,

Internal FET turns off when CT voltage reach to 1.4V. It turns on again only when CT discharges to 0.16V. (See the FAULT TIMER (CT) : Threshold voltage ) in the EC table.

Since FET is off, there is no point in current increasing during discharge time.

Regards,
Venkat

0 Tsukui Yusuke over 9 years ago in reply to Venkata Nandam

Guru 21930 points

Venkat-san,

Thank you for your kind support.

You mean,
1.over the Ifolt limit →　timer charge start
2.under the Ifolt limit → timer discharge start (Less than 1.4V condition)
3.over the lfolt limit again →　timer discharge to 0.16V
4.over the lfolt limit again (CT=Less than 0.16V condition) →timer recharge
TPS2420 CT.pdf

Is my understanding of this correct?

Best Regards,
Yusuke/Japan Disty

0 Venkata Nandam over 9 years ago in reply to Tsukui Yusuke

TI__Intellectual 2800 points

Yes Yusuke-san.

Regards,
Venkat
