TPS61232 fails on connecting load?

please share the schematic and PCB layout image. IC failure normally cause by bad layout

Hi Jasper,

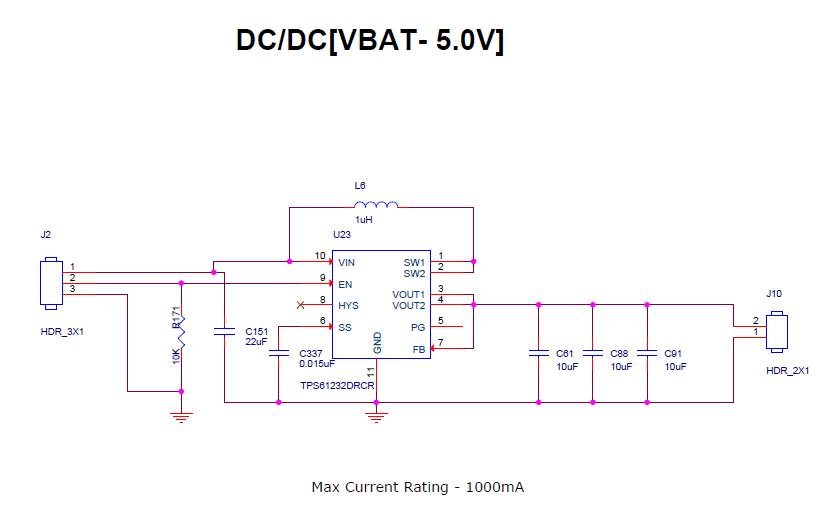

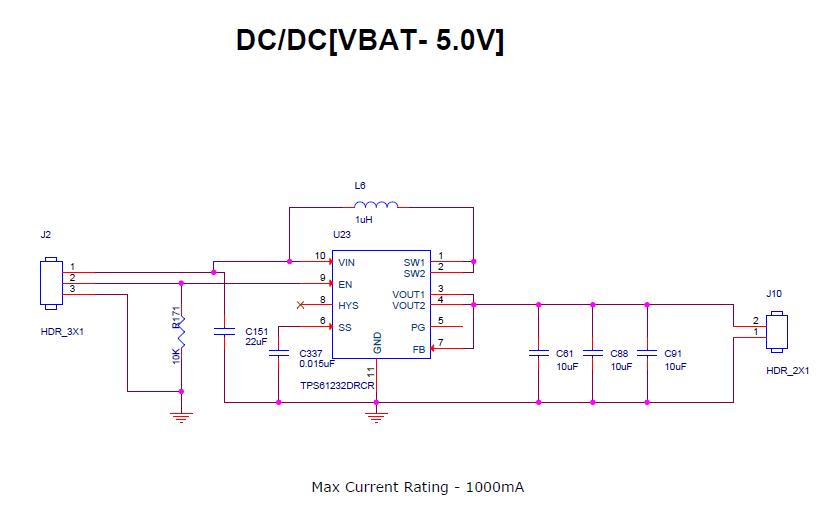

The IC is planned to be used in a production board. So as a test run we had the IC wired up in a general purpose board to test its robustness. In the wired up circuit it failed which put us in doubt whether it works properly. The actual schematic is shared below

S.No	Quantity	Reference	Value	Description	Part Number
1	3	C61,C88,C91	10uF	CAP CERAMIC 10uF 10V 20% X5R 0603	LMK107BJ106MALTD
2	1	C151	22uF	CAP CERAMIC 22uF 6.3V 20% X5R 0805	JMK212BJ226MG-T
3	1	C337	0.015uF	CAP CERAMIC 0.015uF 16V 10% X7R 0402	GRM155R71C153KA01J
4	1	J2	HDR_3X1	2.54mm 3X1 Standard Berg Stick
5	1	J10	HDR_2X1	2.54mm 2X1 Standard Berg Stick
6	1	L6	1uH	IND POWER 1uH 7A 20% SMD	SRP5030T-1R0M
7	1	R171	10K	RES 10K 1/20W 5% 0201	ERJ-1GEJ103C
8	1	U23	TPS61232DRCR		TPS61232DRCR

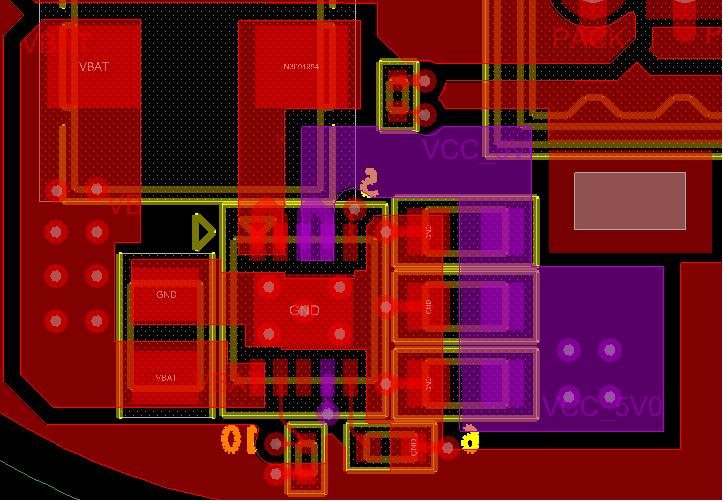

PCB Layout:

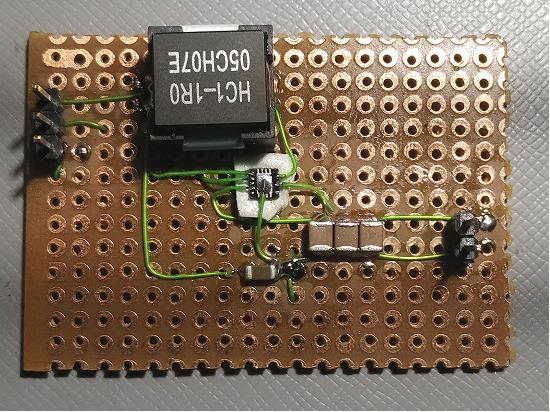

Pls tell the possible ways to test it before it goes to production. The wired up circuit is also added here.

Thanks

FYI the continuous current at output is around 300mA where as an inrush/spike can be near 390mA. The battery being used is a Li-ion with 4200mAH.

1. no surprise to see device failure in the general board. High voltage spike on SW pin will damage the device because of the parasitic inductance of the wire. you can apply an EVM to measure the robustness of the device, that is why we need EVM.
2. you can select TPS61252 if the maximum output current is not higher than 400mA. if requiring 1A, TPS61232 should be use.
3. if using TPS61232, the output capacitor should be a least 3 * 22uF/0805 to make sure the "effective" capacitance higher than 20uF.
4. the current layout is good.

Hi Jasper,

Is there any dedicated EVMs available for this TPS61232DRCT device. If so please send me the link.

Thanks

TPS61232 is the fixed output voltage version of TPS61230, you can apply the TPS61230EVM for evaluation, the performance is the same.

www.ti.com/.../TPS61230EVM-089
