The difference between TPS51200 & TPS51206

Jacky Chen29

Other Parts Discussed in Thread: TPS51200, TPS51206

Hola,

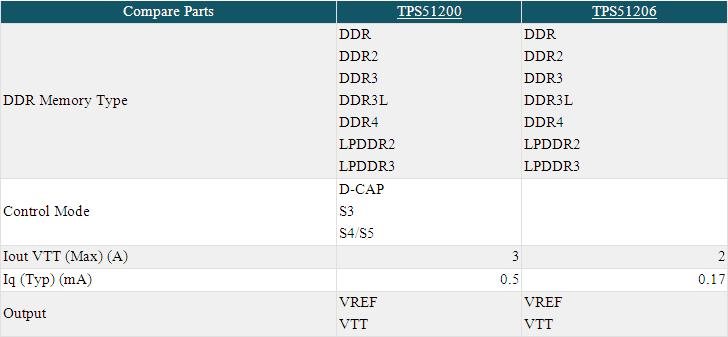

I made a comparison table of TPS51200 & TPS51206 below：

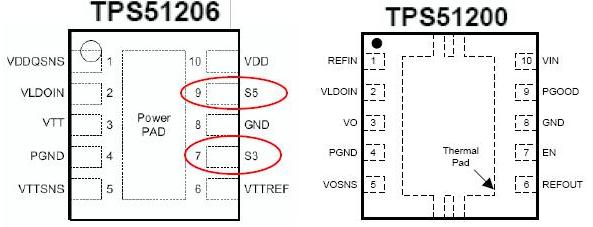

But I found a problem of pin define in data sheet below：

You can see that the TPS51206 has S5/S3 pin and the TPS51200 with S5/S3, but the comparison table as above shown TPS51200 has S3/S5！

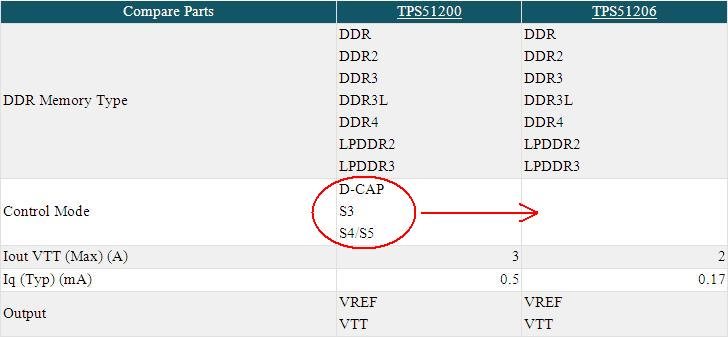

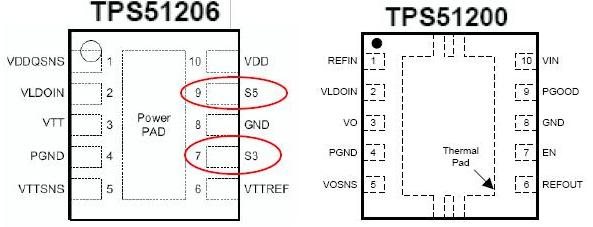

Is it has some typo for the comparison table and they are should be switched each other like below？right？

over 9 years ago

0 JohnTucker over 9 years ago

TI__Guru**** 191445 points

Both are incorrect. Both TPS51200 and TPS51206 have S3/S5 pins. Neither are DCAP devices (switching regulators). They are both linear regulators.

0 Jacky Chen29 over 9 years ago in reply to JohnTucker

Genius 4735 points

Hola John,

Thank you for your prompt reply and my questions are listed below：

1. You mentioned that both TPS51200 and TPS51206 have S3/S5 pins but I cannot find TPS51200 have these two pins. Can you please advice which pins are related with S3/S5？

2. You mentioned that both TPS51206 & TPS51200 are linear regulators so they are belongs LDO？right？

3. What's the different between TPS5120X and general regulator？

4. What's the benefit of source/sink current？

0 JohnTucker over 9 years ago in reply to Jacky Chen29

TI__Guru**** 191445 points

It is pretty confusing, no? Actually, TPS51200 only supports S3 via the EN pin. I don't typically support these devices, but as you may know, I spend a lot of time on e2e for general support.

0 Jacky Chen29 over 9 years ago in reply to JohnTucker

Genius 4735 points

Hola John,

Thank you very so much, thank you for much effort to solve our problem.

And can you help transfer these questions to someone who can answer it？ Thank you again...

1. Both TPS51206 & TPS51200 are linear regulators so they are belongs LDO？right？

2. What's the different between TPS5120X and general regulator？

3. What's the benefit of source/sink current？

0 Qian Chen over 9 years ago in reply to Jacky Chen29

TI__Mastermind 24075 points

1. Both TPS51206 & TPS51200 are linear regulators so they are belongs LDO？right？

Answer: Yes, both TPS51200 and TPS51206 belongs to LDO.

2. What's the different between TPS5120X and general regulator？

Answer: TPS5120x is mainly for DDR application. These devices can sink current and meet other DDR specifications.

3. What's the benefit of source/sink current？

Answer: In DDR application, there is current coming from DIMM. The regulator need sink current capability to keep the output voltage stable.

Thanks

Qian

0 Jacky Chen29 over 9 years ago in reply to Qian Chen

Genius 4735 points

Hola Qian,
Thank you very so much.
