TPS4H160-Q1 / functional block diagram

K.Yaita

Other Parts Discussed in Thread: TPS4H160-Q1

Hi Team,

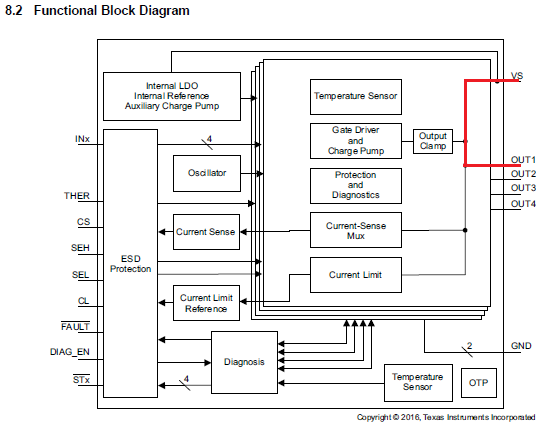

I would like to ask about functional block diagram of TPS4H160-Q1.
Where is NMOS power FET(high side switch)?
It seems OUTx pin is connected to VS pin internally.

I would like to know how to switch on/off for each four Nch MOSFETs(CH1-CH4).
Is it INx pin?

Best Regards,
Yaita / Japan disty

over 9 years ago

0 Aleksandras_Kaknevicius over 9 years ago

TI__Genius 15760 points

Hi Yaita,

I have contacted the appropriate engineer and they will get back to you soon.

Thanks,

Alek Kaknevicius

0 Alex Wang (LED) over 9 years ago

TI__Intellectual 1150 points

Hello,

It's a typo. We'll consult the datasheet team to revise it sooner. Thanks for your kindness.

Any technical question, feel free to contact me directly: alex.wang@ti.com

0 K.Yaita over 9 years ago in reply to Alex Wang (LED)

Guru 29720 points

Hi Alex-san,

Thank you for your support.
I understood it is a typo.

May I have your comment about the following question?
>I would like to know how to switch on/off for each four Nch MOSFETs(CH1-CH4).
>Is it INx pin?

Best Regards,
Yaita

0 Alex Wang (LED) over 9 years ago in reply to K.Yaita

TI__Intellectual 1150 points

Yes, correct.
