TPS211x / Behavior at current limit condition

S.Satoshi

Hi,

Please let me ask about behavior at current limit condition because there is no detailed description or waveform in datasheet.

Does TSP211x keep to flow ILIM continuously (constant current operation) or turn off internal power SW and try to turn on automatically (Hiccup mode)?

Best Regards,

Sonoki

over 9 years ago

0 Darwin Fernandez over 9 years ago

TI__Mastermind 41760 points

Sonoki-san,

This is currently being looked into and an answer will be posted when available.

0 S.Satoshi over 9 years ago in reply to Darwin Fernandez

Guru 21685 points

Hi Fernandez,

Thank you for your response. I'm waiting for your update.

Best Regards,
Sonoki

0 Darwin Fernandez over 9 years ago in reply to S.Satoshi

TI__Mastermind 41760 points

Sonoki-san

This is a current limit foldback IC. The output voltage will foldback to maintain the current. Since the output folds back, there will be some dissipation on the pass FET. As such, the IC may reach thermal shutdown if the overcurrent is prolonged.

0 S.Satoshi over 9 years ago in reply to Darwin Fernandez

Guru 21685 points

Hi Fernandez,

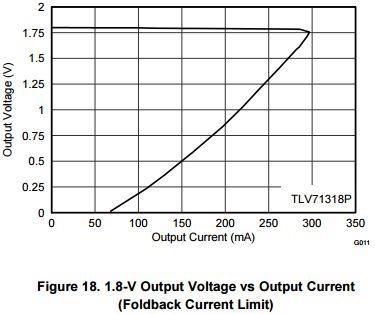

Can you look for foldback current limit curve from internal database? Or can you try to measure it? My customer request us the curve like attached which is referred from LDO.

I apologize for requesting this when you are busy but please consider it.

Best Regards,

Sonoki

0 Darwin Fernandez over 9 years ago in reply to S.Satoshi

TI__Mastermind 41760 points

Hi Sonoki-san,

As part of it's protection circuitry, the thermal shutdown will occur when the part begins to foldback and then part will cycle on-off before the measurement can be taken. Therefore, we can't make a graph like shown in the example above unfortunately.
