TPS25921 ILIM variation

Kazuya Nakai59

Guru 21505 points

Hello guys,

Our customer is considering to use TPS25921 for a actuator driver protection with high volume unit.

They wants to know ILIM variation with 100kohm RILIM when the voltage between IN and OUT is 1.0V, 0.5V, 0.2V and 0.1V.

Could you please give me the variation data?

If you don't have such data, could you please give me ILIM variation with 95.3kohm RILIM instead of 100kohm case

when the voltage between IN and OUT is 1.0V, 0.5V, 0.2V and 0.1V?

Your reply would be appreciated.

Best regards,

Kazuya Nakai.

over 9 years ago

0 Venkata Nandam over 9 years ago

TI__Intellectual 2800 points

Hi Nakai-san,

For any voltages lower than 1V between IN and OUT, accuracy is +/-7% at 95.3k and 100 RLIM resistors.

Current limit variation with 95.3k RLIM is >>> 0.93A (min); 1A (typ); 1.07(max).

Current limit variation with 100k RLIM is >>> 0.98A (min); 1.055A (typ); 1.13(max).

Regards,
Venkat

0 Kazuya Nakai59 over 9 years ago in reply to Venkata Nandam

Guru 21505 points

Hi Venkata,

Thank you for your reply.

I understood that ILIM accuracy is +/-7% at 95.3kohm and 100kohm RLIM resistors.

Could you please give me a graph with X axis is output current (Io) and Y axis is output voltage (Vo) when RILIM is 95.3ohm or 100kohm and VIN is 10.8V, 13.5V, 15.6V?

The customer needs the graph to understand that how TPS25921 output voltage is changed when output current is around the current limit value.
Also a enginner of the company wants to use the graph for explanation of the device for other engineers of his team.

Thank you again and best regards,
Kazuya Nakai.

0 Venkata Nandam over 9 years ago in reply to Kazuya Nakai59

TI__Intellectual 2800 points

Hi Nakai-san,

Graph is not readily available. We can provide it by EOB today.

Regards,
Venkat

0 Rakesh over 9 years ago in reply to Venkata Nandam

TI__Guru** 105361 points

Hi Nakai-san,

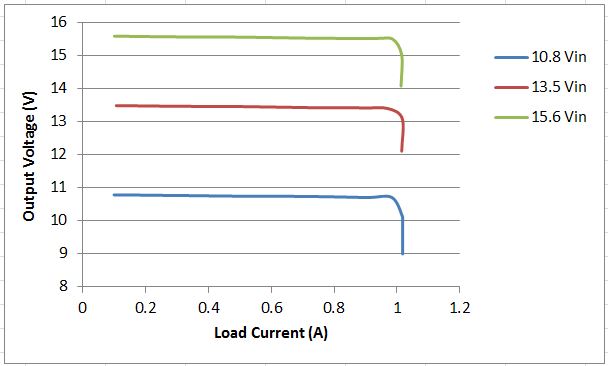

Here is the graph illustrating output voltage variation with respect to load current.

Regards,

Rakesh

0 Rakesh over 9 years ago in reply to Rakesh

TI__Guru** 105361 points

Hi Nakai-san,

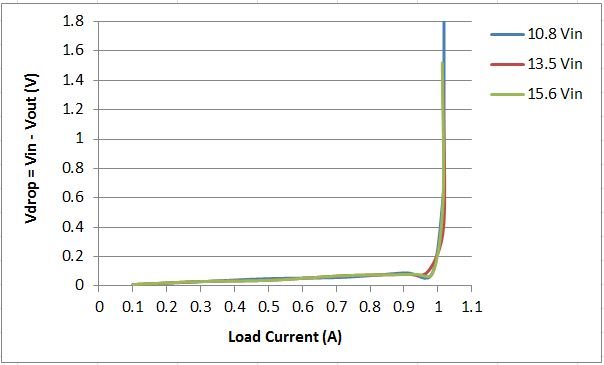

To give you more insight on voltage drop with load current, the below graph between (Vin-Vout) and load current is shown. RLIM resistor is set at 95.3kohm.

Regards,

Rakesh

0 Kazuya Nakai59 over 9 years ago in reply to Rakesh

Guru 21505 points

Hi Rakesh,

Thank you for the graph. It's very useful for our customer.

Thank you again and best regards,
Kazuya Nakai.
