TPS24751 / bypass capacitor C1

K.Yaita

Hi Team,

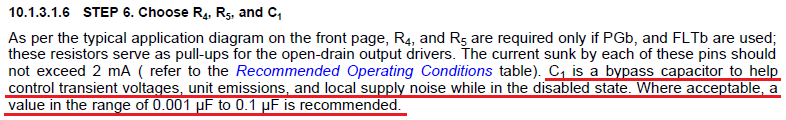

I couldn't find C1 capacitor that is described below.

Is C1 the following red part?

I believe it but would like to confirm just in case.

Best Regards,
Yaita / Japan disty

over 8 years ago

0 Rakesh over 8 years ago

TI__Guru** 105361 points

Hi Yaita-san,

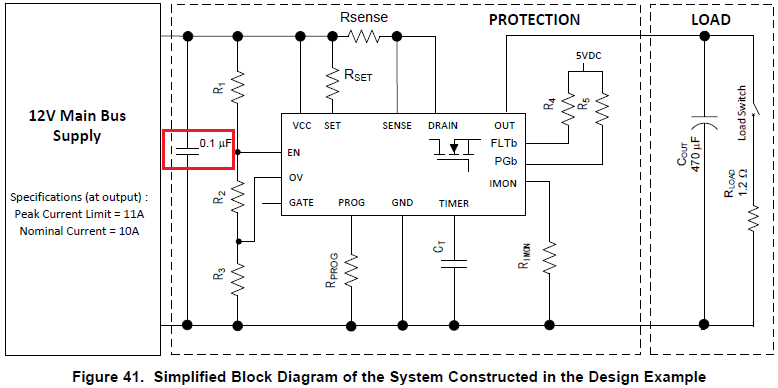

Yes, the highlighted part 0.1uF is C1 capacitor. We will place the missing designation in the next datasheet revision.
Thank you!

Best Regards,
Rakesh

0 K.Yaita over 8 years ago in reply to Rakesh

Guru 29720 points

Hi Rakesh-san,

I appreciate for your support.
I would like you to confirm one more.

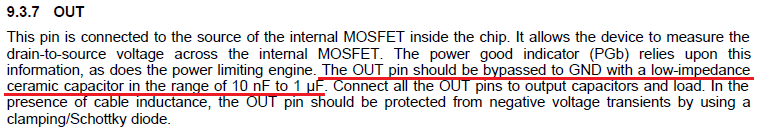

I believe bypass capacitor for OUT pin should be put but I couldn't find it in typical application.

Best Regards,
Yaita

0 Rakesh over 8 years ago in reply to K.Yaita

TI__Guru** 105361 points

Thank you Yaita-san,
Will take necessary action.

Best Regards,
Rakesh
