BQ34Z100PW-G1: What is VCC?

Emil Zacharia George

Intellectual 570 points

Hi,

Can I use BQ34Z100PW-G1 with VREGIN=3V & I/O voltage= 1.8V?

What should be the VCC for it?

What is this VCC?

over 9 years ago

0 ThomasCosby over 9 years ago

TI__Guru 73830 points

You can use an external 3V supply for REGIN and that voltage is considered to be VCC. The logic and I/O are powered by REG25, so the I/O voltage thresholds should work at 1.8V.

0 Emil Zacharia George over 9 years ago in reply to ThomasCosby

Intellectual 570 points

As Max value of vcc is 2.75V according to datasheet, how can it be 3V which we give as Vregin?

0 Emil Zacharia George over 9 years ago in reply to Emil Zacharia George

Intellectual 570 points

Thanks Mr Thomas. Please help me with this.

0 ThomasCosby over 9 years ago in reply to Emil Zacharia George

TI__Guru 73830 points

That is a good point. It looks like they referred to REG25 as VCC in this case. I am not sure why they did this, since REG25 is not a voltage that you would provide.

0 Emil Zacharia George over 9 years ago in reply to ThomasCosby

Intellectual 570 points

Hi Mr.Thomas,

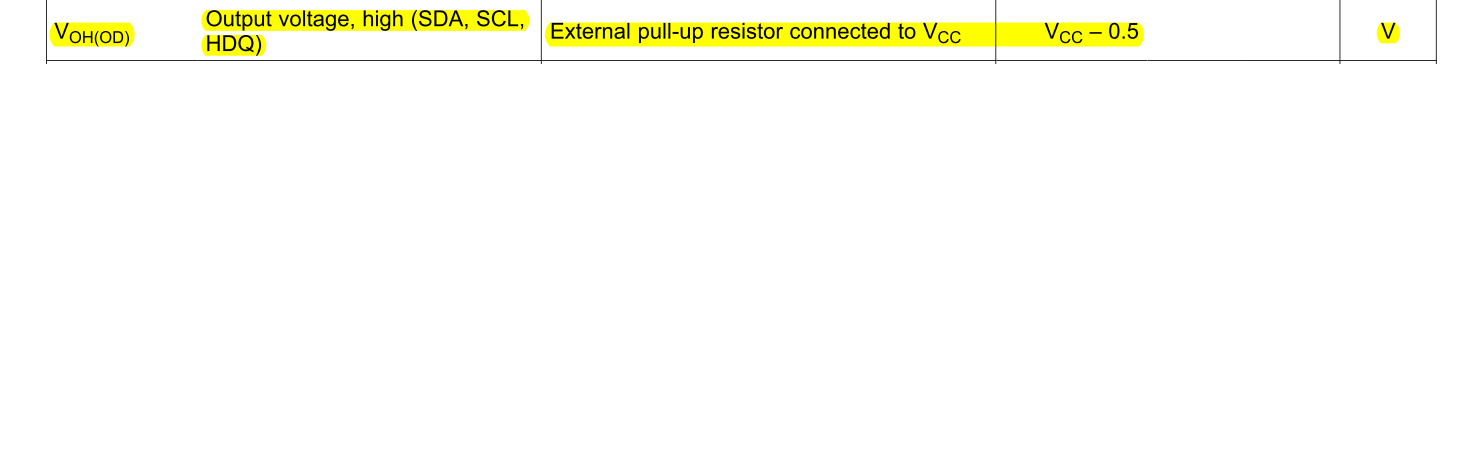

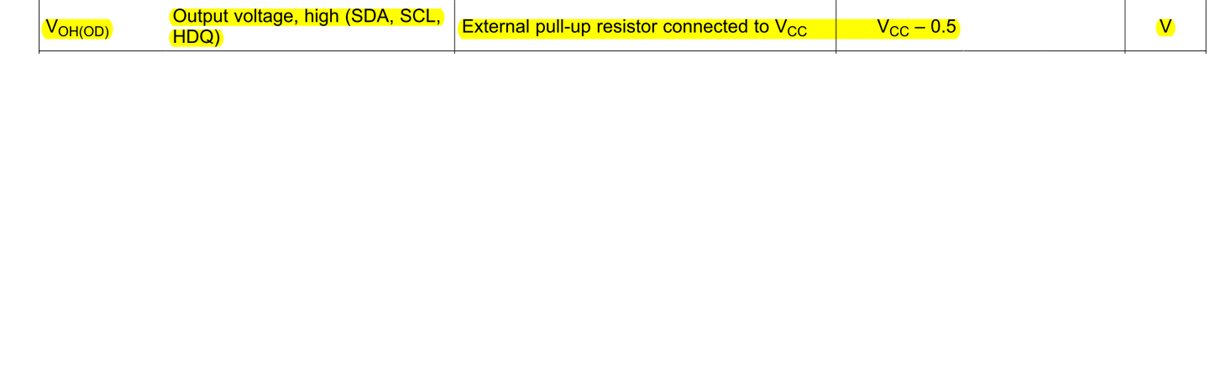

If we pull up SCL,SDA to 1.8V rather than VCC(VREG25), then VOH(OD) will be 1.3V. Am I correct?

So can I use this fuel gauge with VREGIN=3V & 1.8V I/O.
