TPS2553 - About behavior of this device when ILIM pin is shorted to GND or opened.

I will check to see if this behavior has been tested. If the customer has an EVM they can also observe the behavior through testing on their own.

Hi Eric-san,

Thank you for your prompt reply.

Unfortunately, we don’t have EVM now…

I’m very sorry to bother you while you are busy, but I appreciate your cooperation.

Regards,

Kanemaru

Hi Eric-san,

I report their test conditions.

I’m grateful for your cooperation.

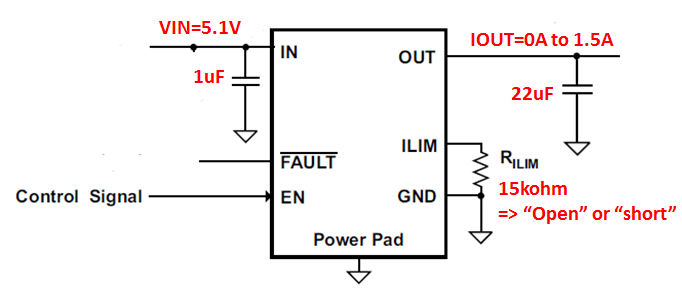

[Test conditions]

Our customer would like to know the following four conditions.

-VIN=5.1V

-IOUT=0A /1.5A

-RLIM=“Open” / “Shorted to GND”

-CIN=1.0uF

-COUT=22uF

Regards,

Kanemaru

Which device package are you interested in (DBV or DRV)?

Hi Eric-san,

Our customer are going to use “DBV(SOT-23) PKG”.

Regards,

Kanemaru

Hi Kanemaru-san,

I did test the power switch circuit you sent of your customer and got the following waveforms for three RILM settings; open, 15k ohms, and shorted to GND, please find attached the waveforms I got for each RILM setting when loading current (IOUT) = 0 Amp and when (IOUT) = 1.5 Amp.

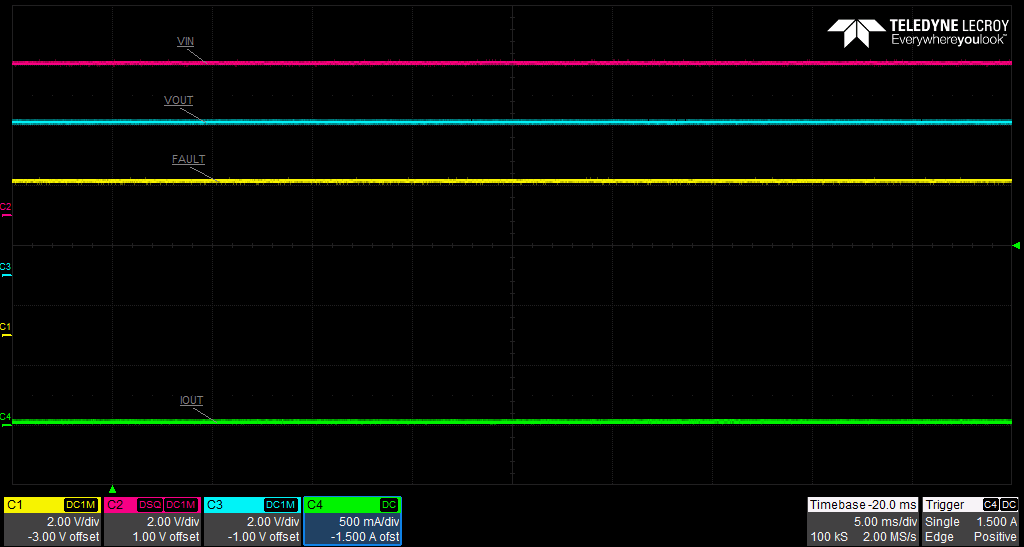

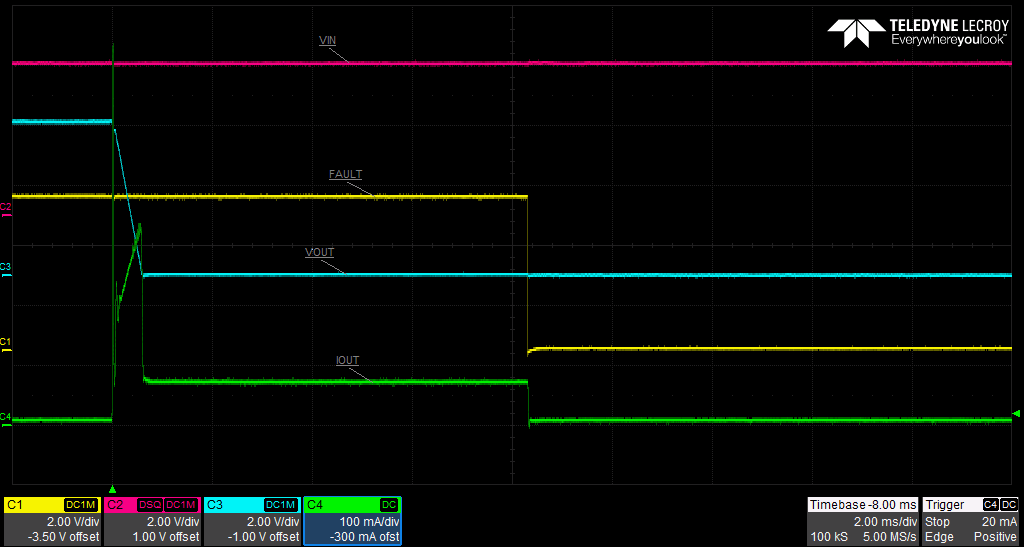

1. RILM is open:

  a. IOUT = 0 Amp.

 b. IOUT = 1.5 Amp.

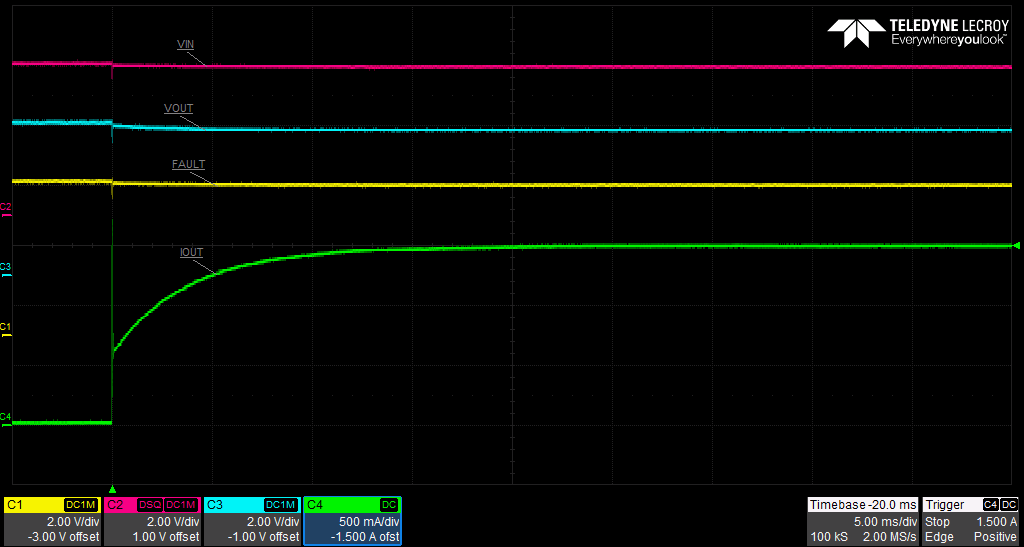

2. RILM = 15k Ohms:

 a. IOUT = 0Amp.

 b. IOUT = 1.5 Amp.

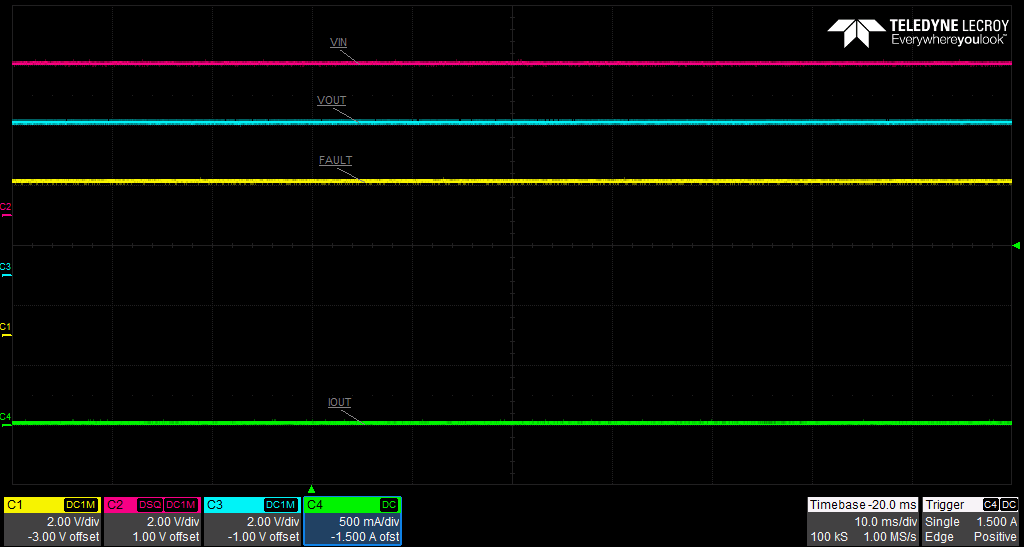

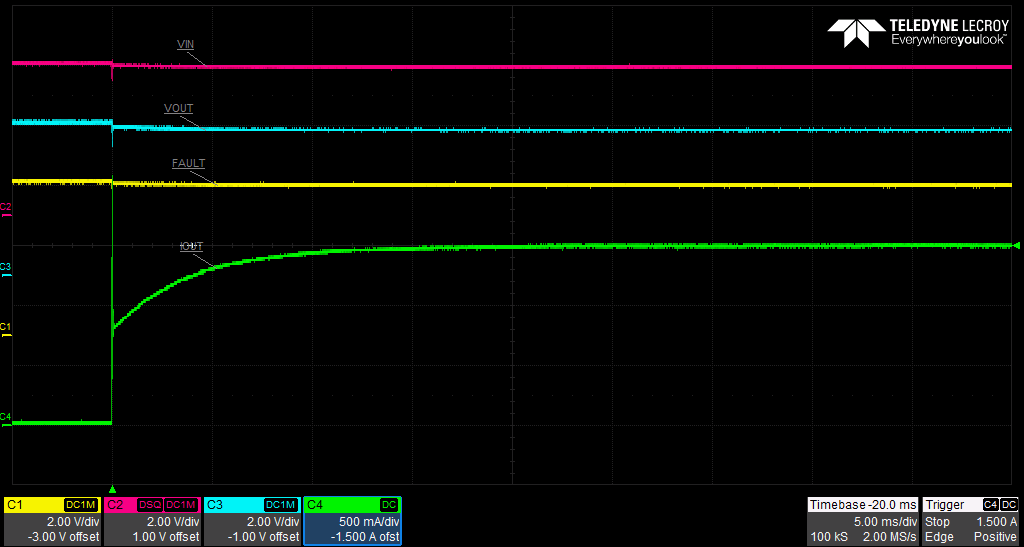

3. RILM = Shorted to GND.

 a. IOUT = 0 Amp.

  b. IOUT = 1.5 Amp.

Best regards,

Haidar

Hi Haidar-san,

Thank you for the information.

I would like to know about behavior when RLIM is open.

According to waveform b, IOUT is limited in around 75mA.

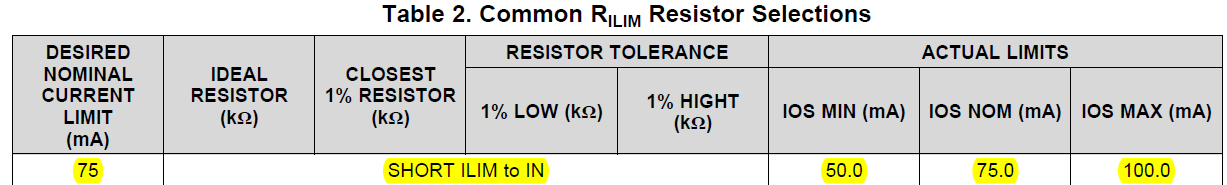

So, I understand it is behavior same as " SHORT ILIM to IN".

Is my understanding correct?

Regards,

Kanemaru

Hi Haidar-san,

Thank you for the information.

I understand. Thank you very much.

Regards,

Kanemaru
