TPS45340 Conducted emission test

priyank mani

Intellectual 290 points

Other Parts Discussed in Thread: TPS54340-Q1

I am getting failure report in CISPR 25 conducted emission test.

below is the schematic of the design.

kindly suggest the suitable filter/ solution for this . below image is the result of the test conducted.

over 8 years ago

0 JohnTucker over 8 years ago

TI__Guru**** 191445 points

Is that input or output? I'm not sure how to interpret that graph. Can you tell me explicitly which frequencies you are concerned with?

0 priyank mani over 8 years ago in reply to JohnTucker

Intellectual 290 points

the band of my concern is 150KHZ to 108MHz.
And we are facing issue in conductive emission, in input.

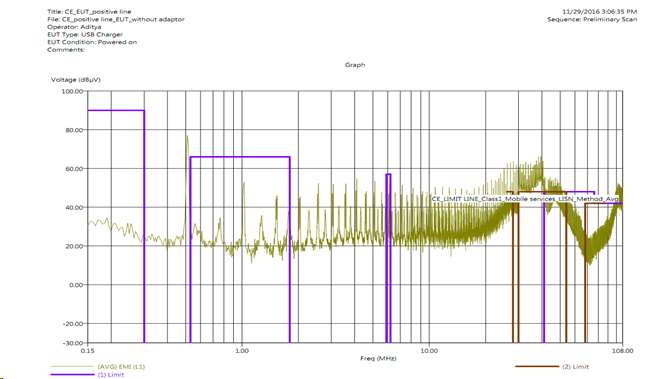

lines in Blue and Brown are the limits in the graph, and emission spikes are going beyond that.

0 JohnTucker over 8 years ago in reply to priyank mani

TI__Guru**** 191445 points

I can't really make out your graph, but 150 kHz to 108 MHz appears to be the entire frequency spectrum. Can you tell me which specific frequencies are a concern? If you could get a high resolution image such as PDF and then point out the specific frequencies I can make some suggestions.

0 priyank mani over 8 years ago in reply to JohnTucker

Intellectual 290 points

Dear John,

kindly find the attached file.

CE_positive line_EUT.pdf

0 JohnTucker over 8 years ago in reply to priyank mani

TI__Guru**** 191445 points

Can you annotate which specific frequencies you are concerned with?

0 priyank mani over 8 years ago in reply to JohnTucker

Intellectual 290 points

Blue one and dark brown color bars are the limits, but emission spikes are going up. As you can easily see in the image.
how to reduce the emission below these limits.
