TPS61181A with 3~6 LEDS Series design

Eric Chen4

Expert 2370 points

Other Parts Discussed in Thread: TPS61181A, WLEDEVM-260

Hi,

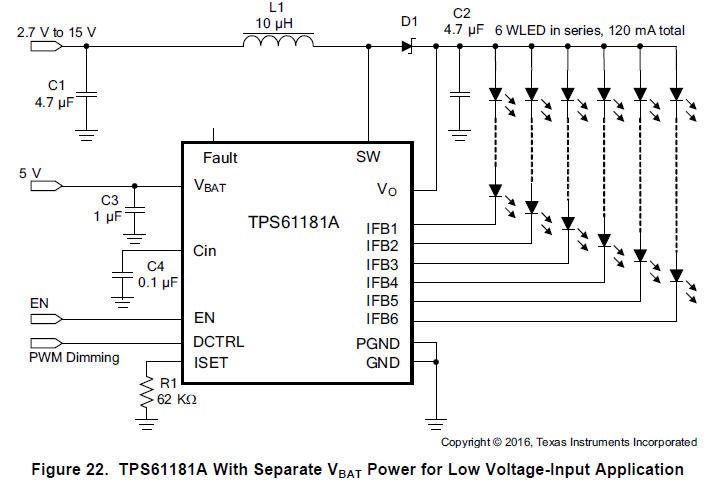

May I know how can implement TPS61181A EVM with WLEDEVM-260 for 3~6 LEDs Series function verify as using Fig.22?

Now the EVM can't workable with the below schematic.

Please kindly provide your suggestion for our verify again.

Thanks.

Regards,

Eric

over 8 years ago

0 Daniel Jeong over 8 years ago

TI__Prodigy 290 points

Hi Eric.

EVM should be modified to support Fig22(Separte Vbat).

Please refer the below to simply implement EVM like Fig22 and turns on 6WLED using WLEDEVM-260.

- Remove Q1, D1, R3 and R2 of EVM

- Install 0 ohm at R11 of EVM

- if you want to use only 6WLEDs on each channel of WLEDEVM-260, remove LED7,8,9 and 10 of each string and connect TP7 to IFBx(J1/3/5/7..)

- Connect EN(J3) to J1.

- Supply 5V to Vbat pin(note that it's not J1 but the pin of the removed R2 connected to TPS61181A Pin3 Vbat)

- Supply 2.7V to J1

You will see like below.

0 Eric Chen4 over 8 years ago in reply to Daniel Jeong

Expert 2370 points

Hi Daniel,

Thanks your suggestion.

Then may I know where is TP7 because need to connect to IFBx?

Thanks.

Regards,

Eric

0 Eric Chen4 over 8 years ago in reply to Eric Chen4

Expert 2370 points

Hi Daniel,
If need 12V input, EN pin should be connect to 5V with the same VBAT voltage, right?
Thanks.

Eric

0 Daniel Jeong over 8 years ago in reply to Eric Chen4

TI__Prodigy 290 points

Hi Eric

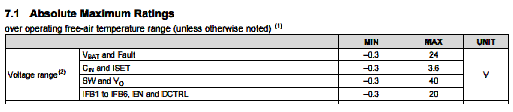

Please refer the datasheet regarding EN pin Min/Max Voltage and logic high/low voltage.

0 Eric Chen4 over 8 years ago in reply to Daniel Jeong

Expert 2370 points

Hi Daniel,

I use your suggestion method to modify TPS61181A EVM but can't work at 12V input & 3.3V EN pin.

Would you kindly help to confirm again?

Thanks.

Regards,

Eric

0 Eric Chen4 over 8 years ago in reply to Eric Chen4

Expert 2370 points

Hi Daniel,

Sorry, it should be J1 & J3 12V input and VBAT(pin3) is 5V then can't enable 6pcs LED.

Would you kindly help to confirm again?

Thanks your help.

Regards,

Eric
