TPS4H160-Q1: Absolute maximum voltege of OUTPUT pins

Hirokazu Takahashi

Expert 8420 points

Part Number: TPS4H160-Q1
Other Parts Discussed in Thread: TPS1H100-Q1

Dear Support team,

I have one question for TPS1H100 and TPS4H160.

Could you let me know about the absolute maximum voltage of OUTPUT pins?

We concern about the case of high voltage noise input.

Best regards,

Hiro Takahashi

over 8 years ago

0 Aleksandras_Kaknevicius over 8 years ago

TI__Genius 15780 points

Hi Hiro,

I have contacted the appropriate engineer and they should respond soon.

Thanks,

Alek Kaknevicius

0 Summer SU over 8 years ago

TI__Expert 4445 points

Hi Takahashi-san,

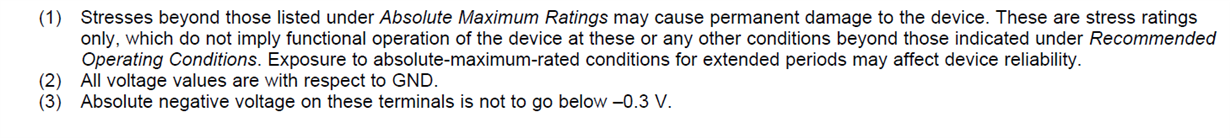

As the TPS4H160-Q1 and TPS1H100-Q1 datasheet absolute maximum rating shows, output is also supply voltage, so the voltage is 40V, 48V for the load dump. this detail please refer the note, 1,2, 3, Thanks!

Summer

0 Hirokazu Takahashi over 8 years ago in reply to Summer SU

TI__Expert 8420 points

SU-san

Thanks for your support.

Regards,

Hirokazu Takahashi
