TPS563210A: Discharge resistance

higa daisuke

Intellectual 900 points

Part Number: TPS563210A

Hi support team.

I received an inquiry about a value of discharge resistance and detail of discharge circuit from my customer.

Please tell me about a value of discharge resistance?

TPS56x210A have a output discharge circuit is correct?

Best regards.

Higa

over 8 years ago

0 Anthony Lang over 8 years ago

TI__Expert 4875 points

Hi Higa,

There is no data for this resistor on easy table, but we found this discharge circuit in the IC schematics. I will double check on our EVM and will get back to you later.

Best,

Anthony

0 higa daisuke over 8 years ago in reply to Anthony Lang

Intellectual 900 points

Hi Anthony

Thank you for your quickly reply.
My customer requests quickly discharge(less than 100ms under connected 100uF capacitor).

Do TPS56x210A have a self-discharge mode?

Best regards.

0 Anthony Lang over 8 years ago in reply to higa daisuke

TI__Expert 4875 points

Hi Higa,

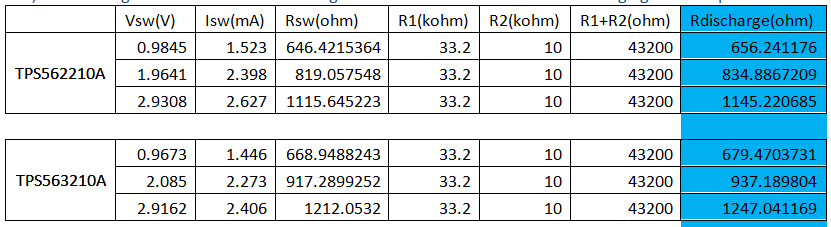

I did some test in the lab. A voltage is applied on SW when EN =0. The current is measured to calculate this discharge resistor. Here is the data I got:

Best,

Anthony

0 higa daisuke over 8 years ago in reply to Anthony Lang

Intellectual 900 points

Hi Anthony

Thank you very much for your good support!

Best regards.
Higa
