TPS61232: circuit not boosting input or responding to enable input.

Benjamin Lebson

Part Number: TPS61232

I have created a very small circuit to test out the TPS61232 and am having issues. I based my design on the reference design from the datasheet except for attaching the 'EN' pin to an input. When the circuit is connected it is giving a 3.92V output on a 4.2V input. This doesn't change if I directly ground the EN pin or bring it to Vin.

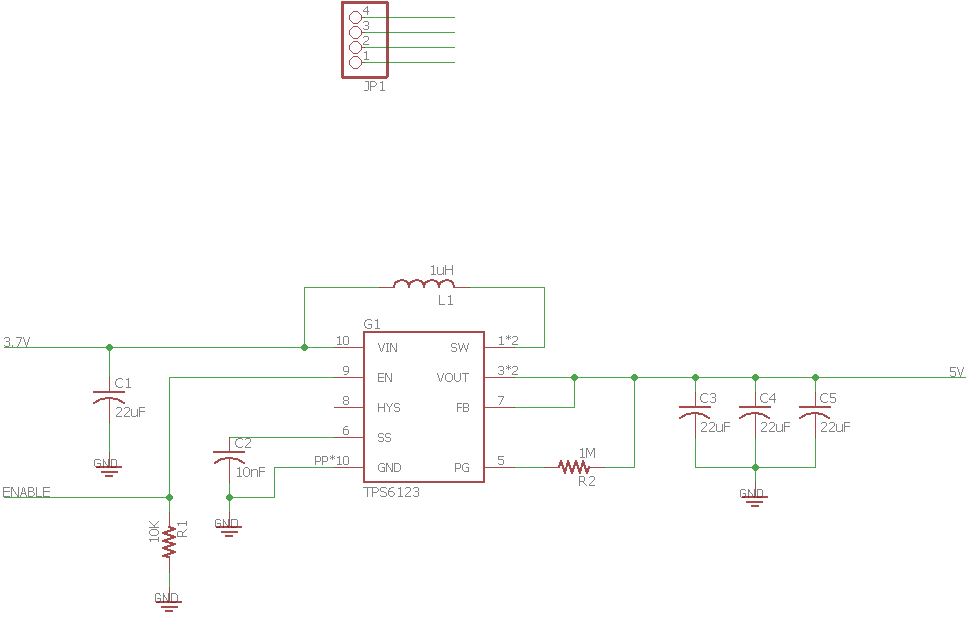

Circuit schematic:

over 8 years ago

0 JohnTucker over 8 years ago

TI__Guru**** 191445 points

Your schematic shows pin 10 twice, once for VIN and once tied to GND.

0 Benjamin Lebson over 8 years ago in reply to JohnTucker

Prodigy 60 points

That label denotes there are 10 contacts linked to that signal, not that it's connected to pin 10.

0 JohnTucker over 8 years ago in reply to Benjamin Lebson

TI__Guru**** 191445 points

I had not seen that type of nomenclature before.

0 Jasper Li over 8 years ago

TI__Mastermind 46905 points

does this circuit operating well and output 5V? could you also share the layout?

0 Benjamin Lebson over 8 years ago in reply to Jasper Li

Prodigy 60 points

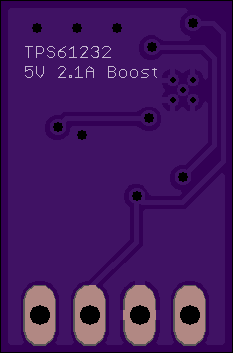

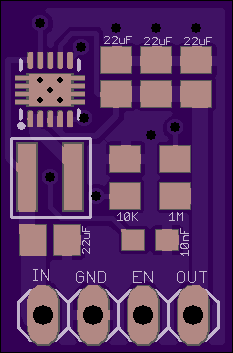

The circuit is not outputting correctly and is not responding to the enable input. Here is the board layout from oshpark:

0 Benjamin Lebson over 8 years ago in reply to Jasper Li

Prodigy 60 points

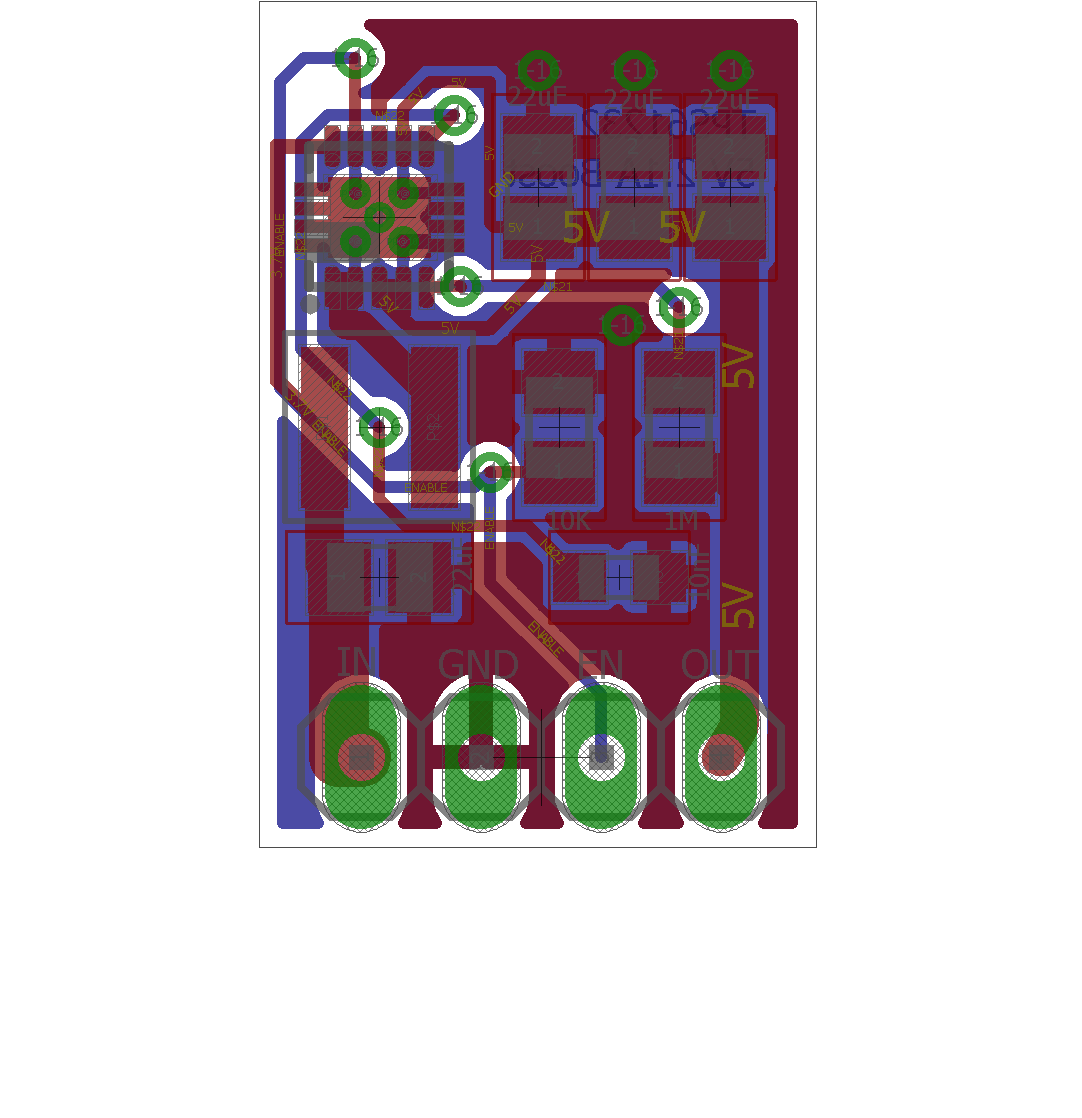

Here is the layout from within Eagle:

0 Jasper Li over 8 years ago in reply to Benjamin Lebson

TI__Mastermind 46905 points

the layout is bad. you should modify your EVM based on the TPS61232EVM and the datasheet.
but i think you should be able to observe the 5V at VOUT in no load condition if the device is not damaged. could you refer to my blog to debug the circuit? "e2e.ti.com/.../tips-in-debugging-a-boost-converter".

0 Benjamin Lebson over 8 years ago in reply to Jasper Li

Prodigy 60 points

I had a feeling that might be the case, I'll attempt to debug the circuit and see if I can find the issue.

0 Franz Schroeder over 7 years ago in reply to Benjamin Lebson

Prodigy 190 points

Hi Benjamin,

since I have the same issue with the TPS61232, I am interested in your solution. Did a better layout fix the problem or did you solve it in another way?

Regards

Franz

0 Benjamin Lebson over 7 years ago in reply to Franz Schroeder

Prodigy 60 points

The improved layout didn't help unfortunately, not sure what I was doing wrong but I ended up going in a different direction.
