TPS82085: Junction to Board Thermal Resistance

Hans

Genius 12865 points

Part Number: TPS82085

Hello Team,

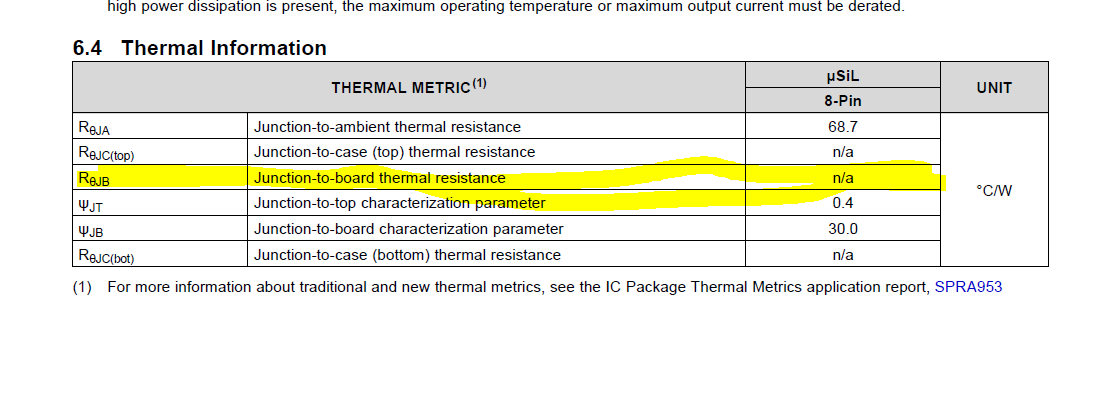

please provide the junction to board thermal resistance. This information is missing in the data sheet.

Thanks and Best Regards,

Hans

over 8 years ago

0 Chris Glaser over 8 years ago

TI__Guru**** 150730 points

Can you use the psi JB metric? Are they trying to calculate the IC temp based on a fixed PCB temperature?

If you have other details, please post them in the thread toolkit at the top.

0 Hans over 8 years ago in reply to Chris Glaser

TI__Genius 12865 points

can we use this JB thermal resistance from fig. 9 and 10 data sheet?

Thanks,

Hans-Günter

0 Chris Glaser over 8 years ago in reply to Hans

TI__Guru**** 150730 points

Yes, that is the psi metric that I mentioned in my first reply.

Can you share the application specifics via email? There are usually no thermal limits/concerns with this module, as it is very efficient.
