TPS62065: About Clock Dithering

Tsukui Yusuke

Guru 21930 points

Part Number: TPS62065
Other Parts Discussed in Thread: TPS62097

Hi,

Our customer is considering to use TPS62065.
A noise problem occurred on analog board using TPS62065.
Customer is suspicious of the Clock Dithering function.
The following content has been described in the datasheet.

However, I would like further information.
Please tell me about the frequency fluctuation of this function.
Could you give me your advice and information?

Best Regards,
Yusuke/Japan Disty

over 8 years ago

0 Chris Glaser over 8 years ago

TI__Guru**** 150650 points

What extra details do you need? A varying dither of 6 nsec maximum is added to the target period (333 nsec).

0 Tsukui Yusuke over 8 years ago in reply to Chris Glaser

Guru 21930 points

Chris-san,

Thank you for your response.
Customer wants to know the variation in operating frequency by 6 ns modulation.
(Customer want to grasp the frequency fluctuation range.)

Do you have data representing jitter of switching rectangular wave?
Or do you have variation data of operating frequency?

Best Regards,
Yusuke/Japan Disty

0 Chris Glaser over 8 years ago in reply to Tsukui Yusuke

TI__Guru**** 150650 points

As explained, the frequency varies from a target period of 330 nsec to 336 nsec.

In any case, the TPS62097 is a newer device with more features and higher efficiency.

0 Chris Glaser over 8 years ago in reply to Chris Glaser

TI__Guru**** 150650 points

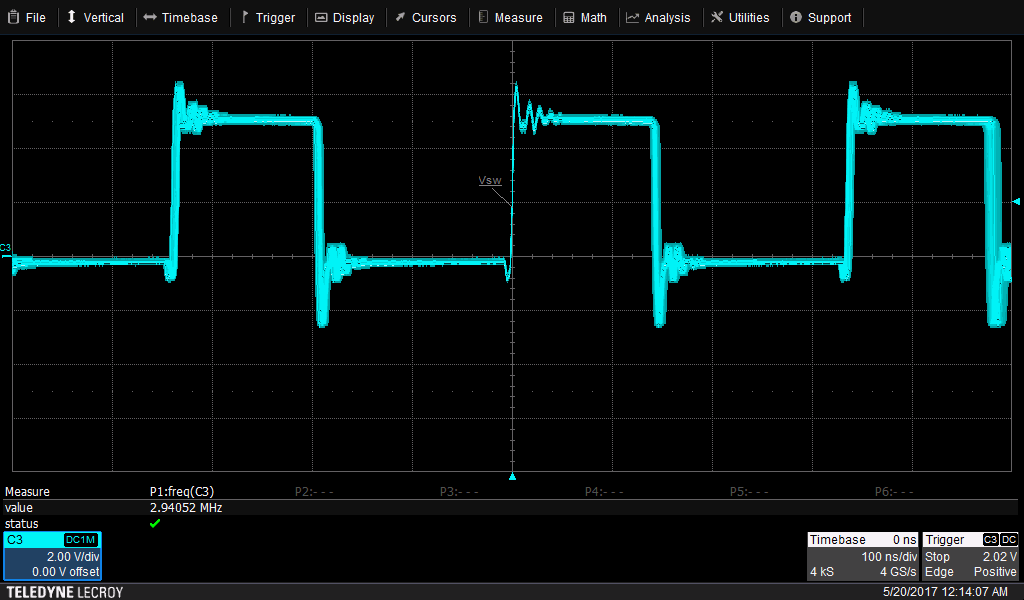

Here is a measurement of the SW node with persistence:

0 Tsukui Yusuke over 8 years ago in reply to Chris Glaser

Guru 21930 points

Chris-san,

Thank you for your kind support.
Could you tell me measurement condition?

Best Regards,
Yusuke/Japan Disty

0 Chris Glaser over 8 years ago in reply to Tsukui Yusuke

TI__Guru**** 150650 points

This is measured on the default EVM with 5Vin, 1.8Vout, and 2A load.
