BQ24195: efficiency data of Figure 1.

K.Yaita

Part Number: BQ24195
Other Parts Discussed in Thread: BQ2419XEVM, ,

Hi Team,

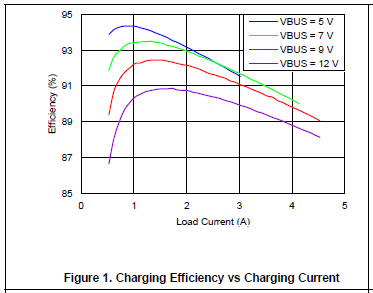

I would like to ask about Figure 1. of datasheet.

1)
Could you tell me the condition (schematic) to get efficiency data?
Is it typical application that shows in page.34?

2)
I believe it is the data under no load of Vsys
Is my understanding correct?

Best regards,
Yaita / Japan disty

over 8 years ago

0 Fernando Lopez over 8 years ago

TI__Expert 8230 points

Hello Yaita-san,

The efficiency data is taken using the bq2419xEVM which is similar to the application schematic on the datasheet, with the addition of the test points for evaluation purposes on the EVM. The voltage measurements are done as close as possible to the IC. There is no system load for the efficiency data on Figure 1.

0 K.Yaita over 8 years ago in reply to Fernando Lopez

Guru 29720 points

Hi Fernando-san,

Thank you for your kind support.

It seems recommended operating condition is 3.9～6V for bq24195/L EVM.
(User’s Guide page 3)
http://www.tij.co.jp/jp/lit/ug/sluua18a/sluua18a.pdf

Is it possible to measure efficiency under VBUS=9V and VBUS=12V condition that is showed in Figure 1 for bq24195/L EVM?

Best Regards,
Yaita

0 Fernando Lopez over 8 years ago in reply to K.Yaita

TI__Expert 8230 points

Hello Yaita-san,

The bq24195L's operating range is 3.9V to 17V. I believe the min/max refer to the recommended operating conditions to cover the test procedure on the User's Guide, but you can test the device at higher voltages to fully evaluate the device.
