TPS61194: The Vout of TPS61194 is wrong.

Wenle Liang

Part Number: TPS61194

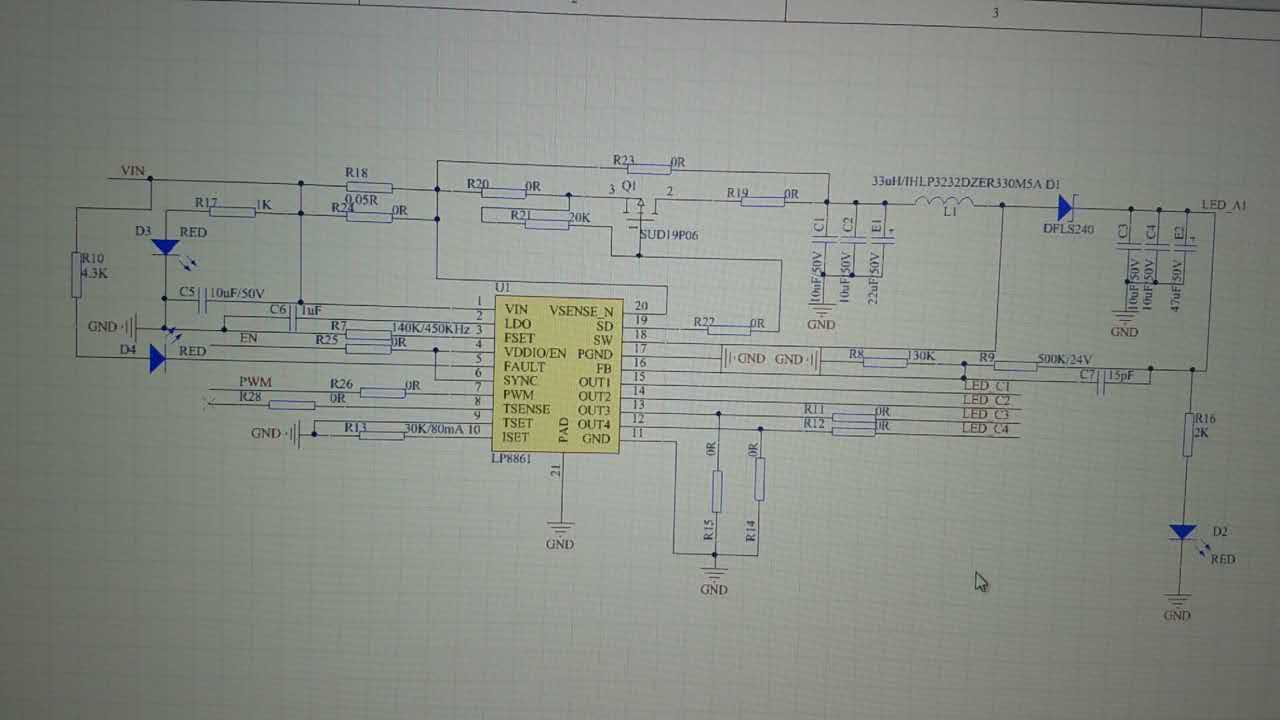

My schematic is showed blow. The input Voltage is +12V. The Vout designed is +24V. But I can only get a +12V Vout. Plus, the Fault pin is low, so the led is on.

over 8 years ago

0 Angelos Tsiros over 8 years ago

TI__Intellectual 2140 points

Hi,

Could you please clarify how many LEDs in series you connect on OUT1-OUT4? Also, could you please clarify how Vout was designed to be 24V?

0 Wenle Liang over 8 years ago in reply to Angelos Tsiros

Intellectual 270 points

No matter whether I connect load or not to the Output, Vout is 12V.
Vou is designed based on the equation from data sheet:
VMAX BOOST = (VBG/R13+ 0.0387 ) x R12 + VBG; In which VBG=1.2V, R13=130KΩ，R12=500KΩ。

0 Angelos Tsiros over 8 years ago in reply to Wenle Liang

TI__Intellectual 2140 points

You are most likely triggering a fault condition. You need to configure at least one of the four OUTx pins such that the voltage at the OUTx pin is higher than the input voltage and less than approximately 30% of VMAX BOOST. Unused OUT pins should be grounded but at least one has to be configured properly.
If you could share what you are trying to accomplish we may be able to give you more specific feedback.
