TLV62585: TLV62585 Shutdown

taichi

Expert 1395 points

Part Number: TLV62585

Hello,

TLV62585 has output discharge circuit with Internal SW of 10Ω Rdson.

In shutdown mode, Figure.16 in datasheet, output voltage has undershoot about -0.3~0.4V.

Is it reason discharge is too early, because internal resistance is as small as 10Ω?

and , is there a way to make it smaller ?

Regards

over 8 years ago

0 Chris Glaser over 8 years ago

TI__Guru**** 150950 points

Hi Taichi,

It is difficult to tell anything from the timescale on that waveform. We'll remeasure it and see if the undershoot is really there or if it is just noise.

0 taichi over 8 years ago in reply to Chris Glaser

Expert 1395 points

Hi Chris-san

Thank you your quick response.
As my customer are very concerned about undershoot, we are waiting for your early reply.

Taichi

0 Chris Glaser over 8 years ago in reply to taichi

TI__Guru**** 150950 points

Hi Taichi,

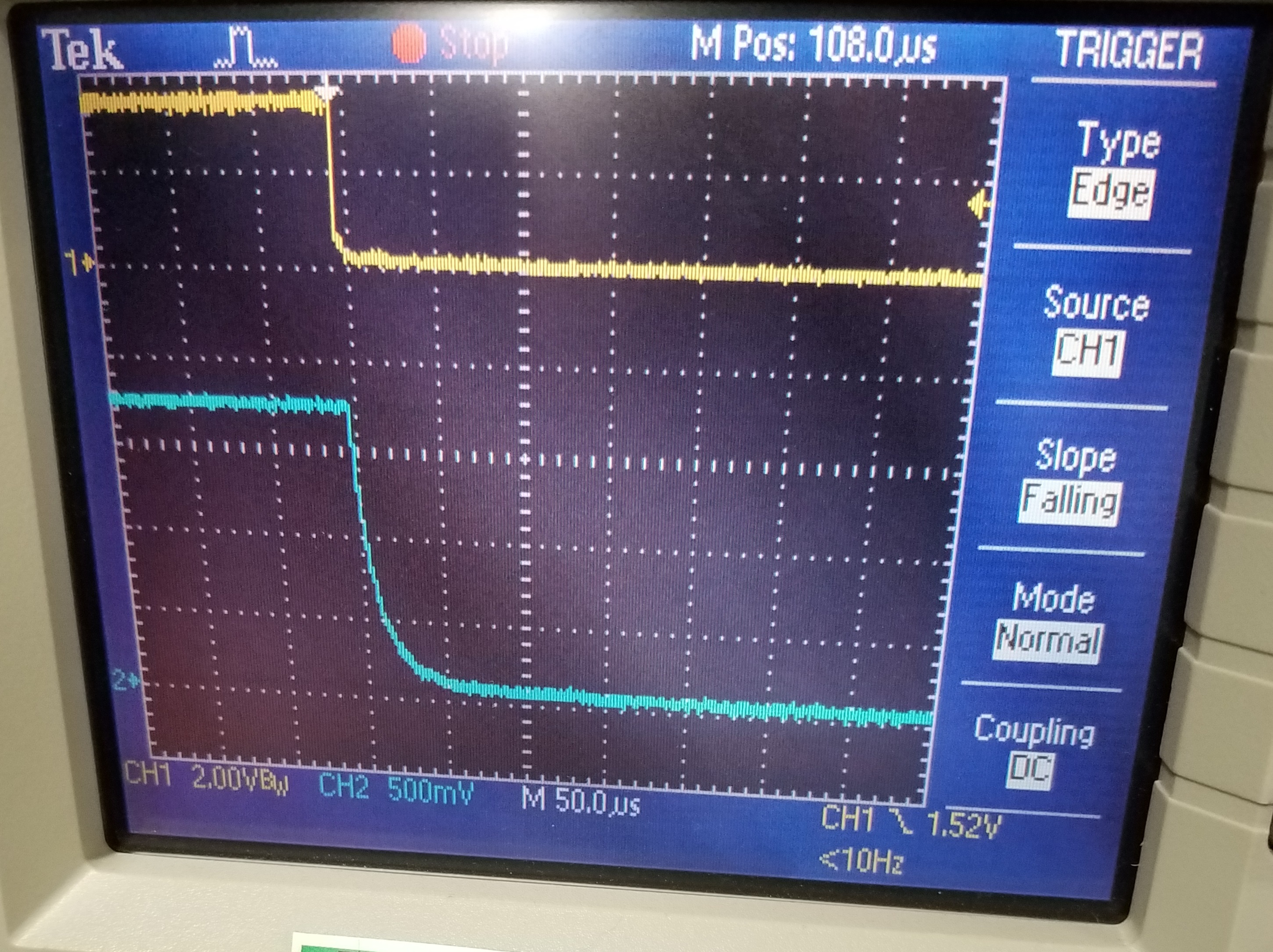

This undershoot is entirely coming from the inductance of the cables between the EVM and load. Here is the same waveform of EN and Vout with a 0.6Ohm load mounted right on the EVM (with no inductive cables).

0 taichi over 8 years ago in reply to Chris Glaser

Expert 1395 points

Hello, Chris-san,

Thanks a lot.

I found the undershoot is caused by inductance of cable.

once, I try to measured at EVM.

Taichi
