TLV62585 thermal

Allen Chang74

Prodigy 30 points

Other Parts Discussed in Thread: TLV62585

Dear Sir:

If you can provide how about the thermal distributions during TLV62585 working

the ambient temperature at the PCB

Thanks a lot

over 7 years ago

0 Emmanuel Granatello over 7 years ago

TI__Expert 3465 points

Hello Allen,

It's a pleasure to support you!
I'm sorry, but I have not understood your question. Could you kindly reformulate it?

Thanks and best regards,
Emmanuel

0 Emmanuel Granatello over 7 years ago in reply to Emmanuel Granatello

TI__Expert 3465 points

Hi Allen,

I guess you are searching for the heat distribution during working operation.

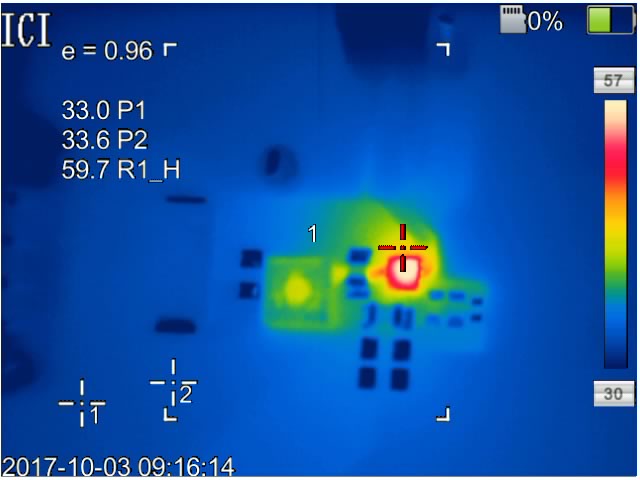

Here you can see a thermal picture

on our EVMunder 3A load and 5V Vin.

I hope I answered your question.

Best regards,

Emmanuel

0 Allen Chang74 over 7 years ago

Prodigy 30 points

Dear Emmanuel:
Sorry for misunderstood, if the thermal worse case of TLV62585 is Celsius 59 ?

0 Emmanuel Granatello over 7 years ago in reply to Allen Chang74

TI__Expert 3465 points

Hello Allen,

IC temperature depends on many factors. Heat dissipation is the most important, hence a strong dependency on the PCB layout. The Example shown in the picture above represents the thermal measurements with a thermal camera of an EVM of the TLV62585.

Thanks and regards,
Emmanuel
