BQ2057C: BQ2057CSN

jyothi sravana

Prodigy 140 points

Part Number: BQ2057C
Other Parts Discussed in Thread: BQ2057, BQ24040, BQ24070

Hai,

I am using BQ2057CSN Li-Ion charger IC to charge 3.7V Battery ,

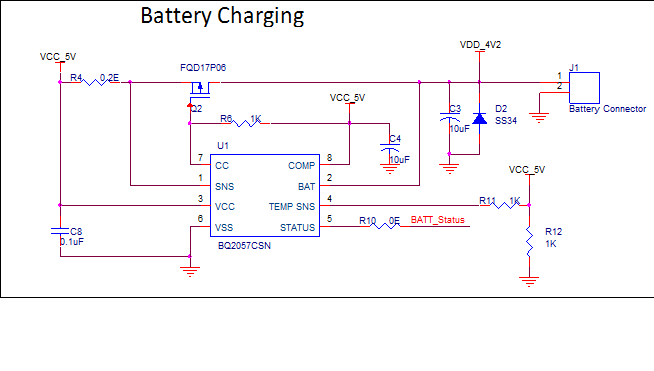

Attached is my circuit FYR

To disable TEMP SNS pin I am applying VCC/2 Voltage and battery is getting charged

But when ever there is no main power and only battery is present in my device there is reverse voltage appearing at R4 Resistor,

Please check and update if there is any change that requires in circuit or because of mosfet switching behaviour that is happening,

Regards

Jyothi

over 7 years ago

0 Bill Johns over 7 years ago

TI__Guru* 75656 points

Hi Jyothi
I did not see your circuit would it be possible to attache it to the post again?

0 jyothi sravana over 7 years ago in reply to Bill Johns

Prodigy 140 points

Hello Bill Johns,

Please find enclosed circuit FYR,

Regards

Jyothi

0 Bill Johns over 7 years ago in reply to jyothi sravana

TI__Guru* 75656 points

Thanks Jyothi

The bq2057 is an old device released a number of years ago, we have several devices that can probably meet your requirements.

BQ24040, BQ24070 and bq24090-- see attached.

The reverse voltage on R4 will be due to reverse current, battery to input. This can be prevented by adding a reverse-blocking diode on the input, see figure 4 -- diode D1.

6761.select best battery charger slua667.pdf

Later devices have the pass fet and blocking diode incorporated internally.
