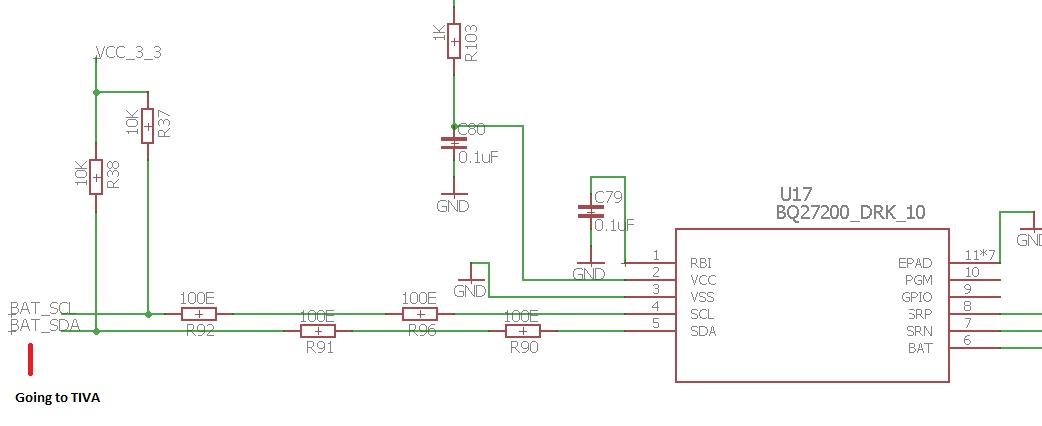

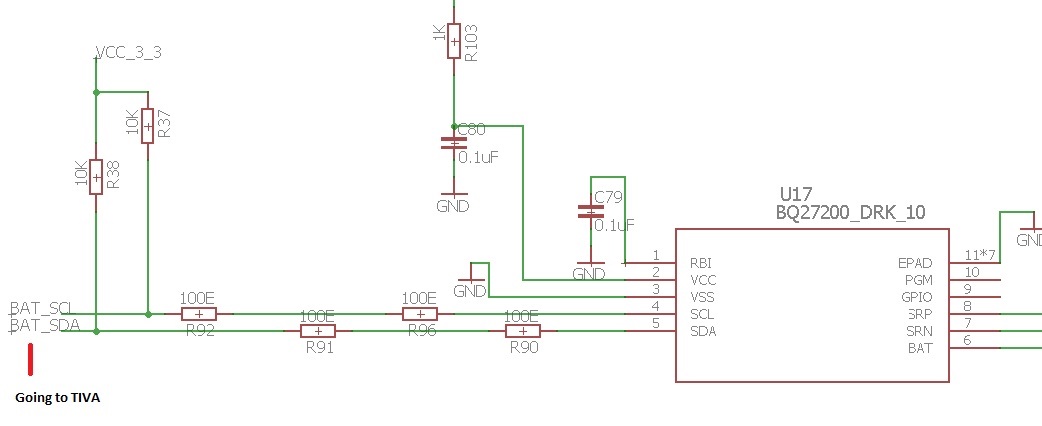

do we need two inseries 100 Ohms resistors on i2c instead of one?
Can we combine one resistor of 200Ohms or use just one?

100Ohms resistor.

over 7 years ago

0 Onyx Ahiakwo over 7 years ago

TI__Guru* 76230 points

Hi Rahul,
You neeed an 5.6V zener diode inbetween the 100ohm resistors as shown in the evm reference schematic.
www.ti.com/.../sluu157b.pdf
Those are there for ESD protection.

thanks
Onyx

0 R_K over 7 years ago in reply to Onyx Ahiakwo

Intellectual 385 points

Thanks Onyx.
But we do not need ESD protection on our board as we have a small trace routed there between BQ27200 and Microcontroller.
Can we eliminate one of the two 100Ohms resistors?

0 Onyx Ahiakwo over 7 years ago in reply to R_K

TI__Guru* 76230 points

If you do not need esd protection, then yes you can eliminate one or both resistors. Those were there as current limiters
thanks
Onyx
