LM53625-Q1: IQ

kura

Genius 4840 points

Part Number: LM53625-Q1

Please let us know the value of IQ MAX @TJ=125C

We only find the value @TJ=85C

over 7 years ago

0 Samuel Jaffe over 7 years ago

TI__Mastermind 25590 points

Checking...

0 Samuel Jaffe over 7 years ago in reply to Samuel Jaffe

TI__Mastermind 25590 points

Kura,

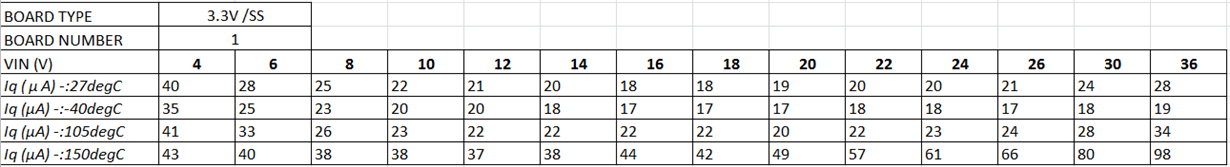

Below is the Iq data for different temperatures. Unfortunately we don't have 125C but we have 105C and 150C.

-Sam

0 kura over 7 years ago in reply to Samuel Jaffe

Genius 4840 points

Is Iq data you sent gotten using with actual Eval board not ATE?

I would like to know the reason why data value is not around 6uA.

0 Samuel Jaffe over 7 years ago in reply to kura

TI__Mastermind 25590 points

Kura,

Yes, I should have specified. The data in the table I shared was taken on an EVM in closed-loop. The spec on the datasheet is open-loop on ATE. I'll get the open-loop data for you as well.

-Sam

0 Samuel Jaffe over 7 years ago in reply to Samuel Jaffe

TI__Mastermind 25590 points

Kura,

ATE tests show that at 150C you can usually expect between 9 and 9.5uA. We do not have this data for 125C. Keep in mind this value is not guaranteed in production. There may be some lot variation in production over time.

-Sam
