BQ25120: BQ25120 shows fault status when battery is NOT connected.

lakshmikanth satyavolu

Part Number: BQ25120
Other Parts Discussed in Thread: EV2400

Hi All,

I am using BQ25120EVM for my development. I bought EV2400 to evaluate chip behavior.

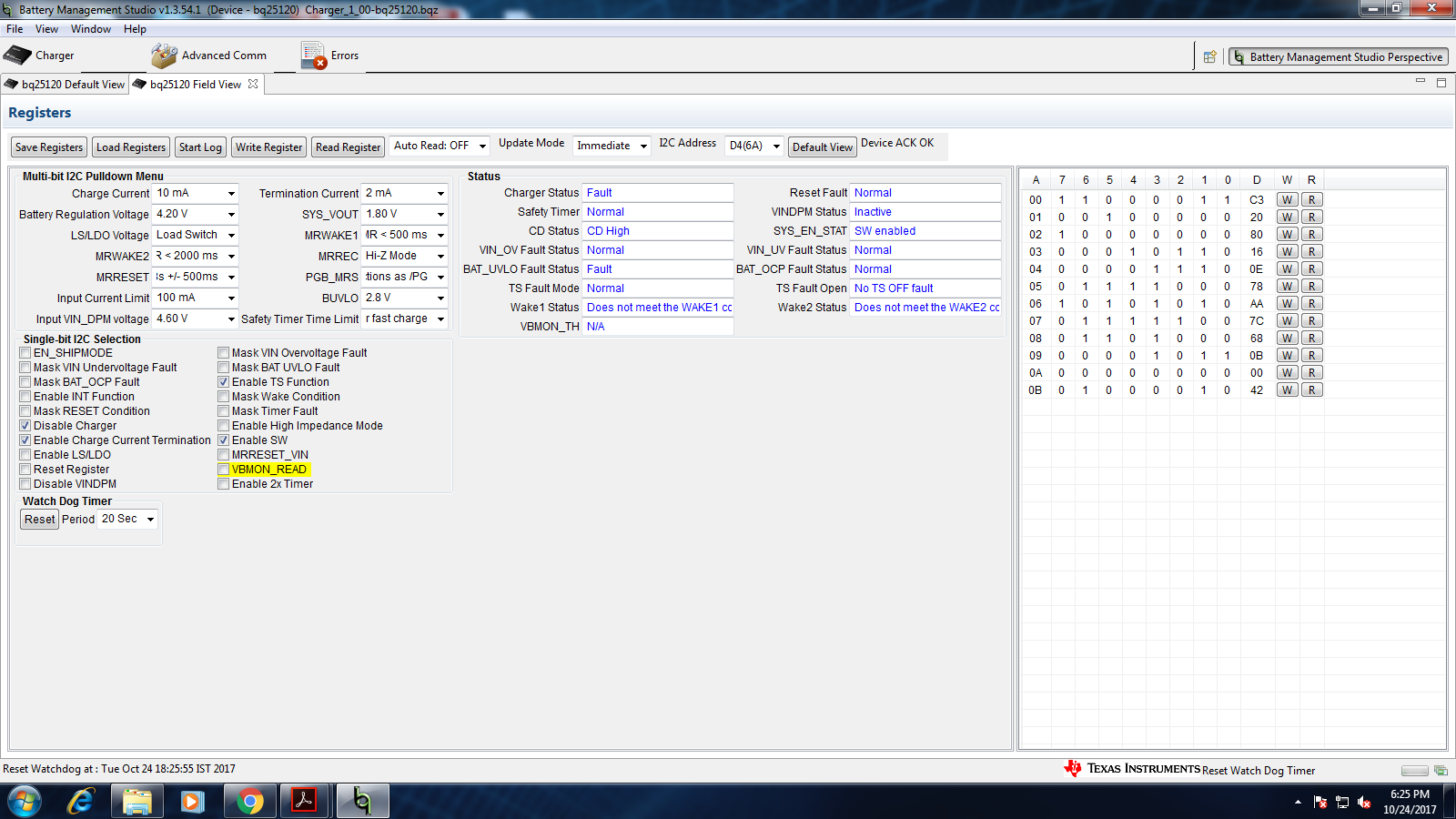

My BQ25120EVM shows always fault conditions when try to access via EV2400. Attached is the screenshot of battery management studio.

Charger status and BAT UVLO Fault fields are showing "Fault" and CD status is High even though I did not connect this pin to vcc.

What is going wrong here? Can someone please help?

Regards

Lakshmikanth.

over 7 years ago

0 Raheem over 7 years ago

TI__Mastermind 21590 points

Hello,
What is the voltage on BAT pin?
Regards,
Raheem

0 lakshmikanth satyavolu over 7 years ago in reply to Raheem

Expert 1680 points

Hi Raheem,

It is 0v.

Regards

Lakshmikanth

0 Raheem over 7 years ago in reply to lakshmikanth satyavolu

TI__Mastermind 21590 points

Hello,
If battery is 0V then the BUVLO fault is correct because the battery is below the BUVLO threshold. Having any fault will cause the charging status to be fault and you cant charge a battery if it isnt present. Regarding CD status, i'll suggest you check the voltage on the CD pin and make sure it's not high. It's possible that you missed a jumper that makes CD high.

Regards,
Raheem
