TPS22916: (TPS22916CL) - Smart-ON Pull Down feature behavior for Active Low version

Jonathan Bender

Part Number: TPS22916

Hello,

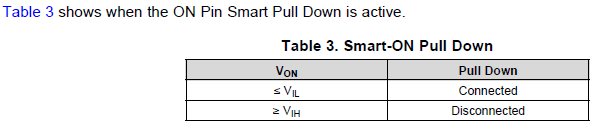

In the TPS22916 datasheet, the Smart-ON Pull Down functionality seems to be written with respect to the Active High devices only. Per Table 3, if the Smart-ON Pull Down was connected with VON <= VIL, then it would be active during normal operation, opposite of the behavior for the Active High versions.

So for TPS22916CL, is the Smart-ON actually a Pull-Up and the reverse of Table 3, to keep the load switch off on power-up until the Active Low signal is asserted?

Thanks,

Jonathan

over 7 years ago

0 Aleksandras_Kaknevicius over 7 years ago

TI__Genius 15780 points

Hi Jonathan,

The table is correct for all device variants including the CL version.

For CL, if the GPIO is floating when VIN ramps up, the pull down will cause the device to enable by default.

Thanks,

Alek Kaknevicius

0 Jonathan Bender over 7 years ago in reply to Aleksandras_Kaknevicius

TI__Expert 7895 points

Hi Alek,

Thanks for the quick reply and clarification. I've got a pull-up in my MCU that will keep the TPS22916CL off when power is first applied, so I should be in good shape.

Jonathan
