BQ2970: Design Review needed

SHYAM THILLAINATHAN

Part Number: BQ2970

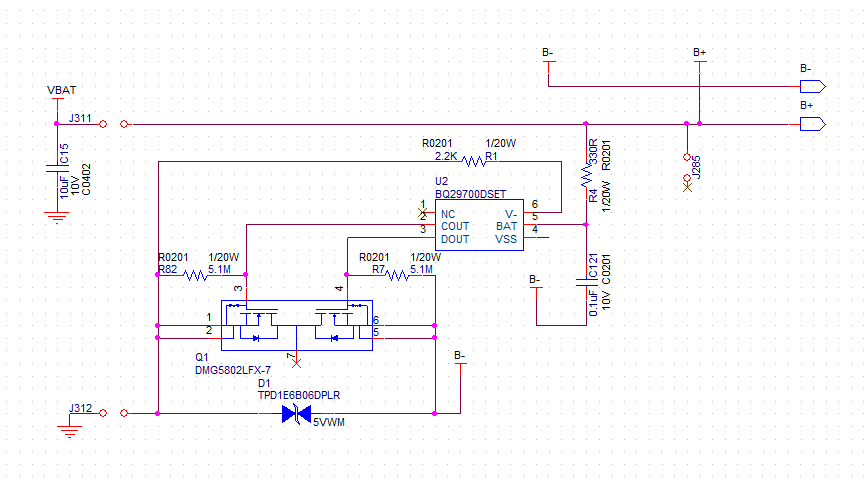

We need the following design reviewed, it would be great if we could get it reviewed by EOD, as this design is going to FAB:

over 7 years ago

0 Onyx Ahiakwo over 7 years ago

TI__Guru* 76230 points

Hi Shyam

what is the maximum desired discharge current that your protector is to protect against? The fet selection is the most important part of this design as you are supposed to choose fets with corresponding Rdson for the overcurrent condition. Did you refer to section 10.2.2 of the data sheet when choosing yor fet?

thanks
Onyx

0 SHYAM THILLAINATHAN over 7 years ago in reply to Onyx Ahiakwo

Prodigy 220 points

We are looking at 20mΩ @ VGS = 2.5V 5.6A . We have a section of circuit that might take 3A.

0 Onyx Ahiakwo over 7 years ago in reply to SHYAM THILLAINATHAN

TI__Guru* 76230 points

Shyam,
Is the total Rdson of the two fets 20mohm? If so your circuit can handle 5A for overcurrent discharge. Given your max is 3A, i believe you are ok

thanks
Onyx
