BQ34Z100-G1: How to enable calibration?

Lukasz Przenioslo

Part Number: BQ34Z100-G1
Other Parts Discussed in Thread: BQSTUDIO

Hello there,

I have the EV2300 connected to my custom BQ34Z100-G1 board through I2C. By using battery management studio 1.3.54.1 I am trying to go through setting the BQ for my battery, The first problem I have stumbled upon is that I cannot figure out how to enable calibration. When I try to calibrate voltage, I get the message "Calibration - A read of data written failed comparison".

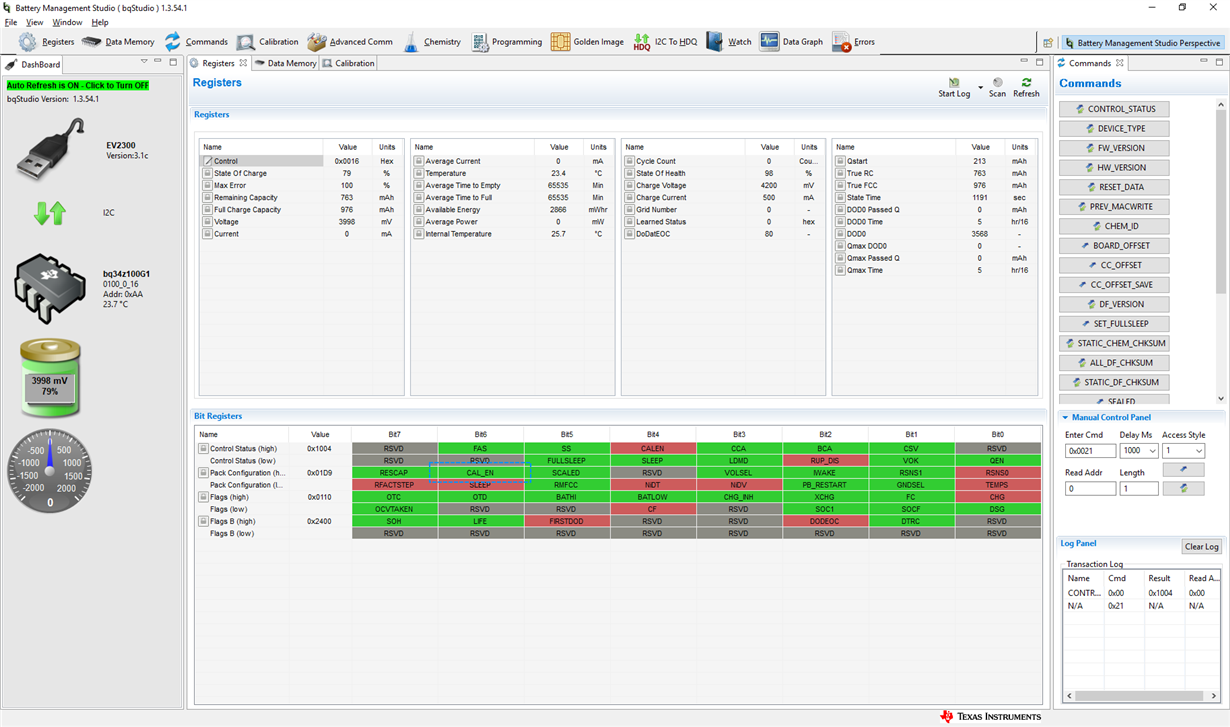

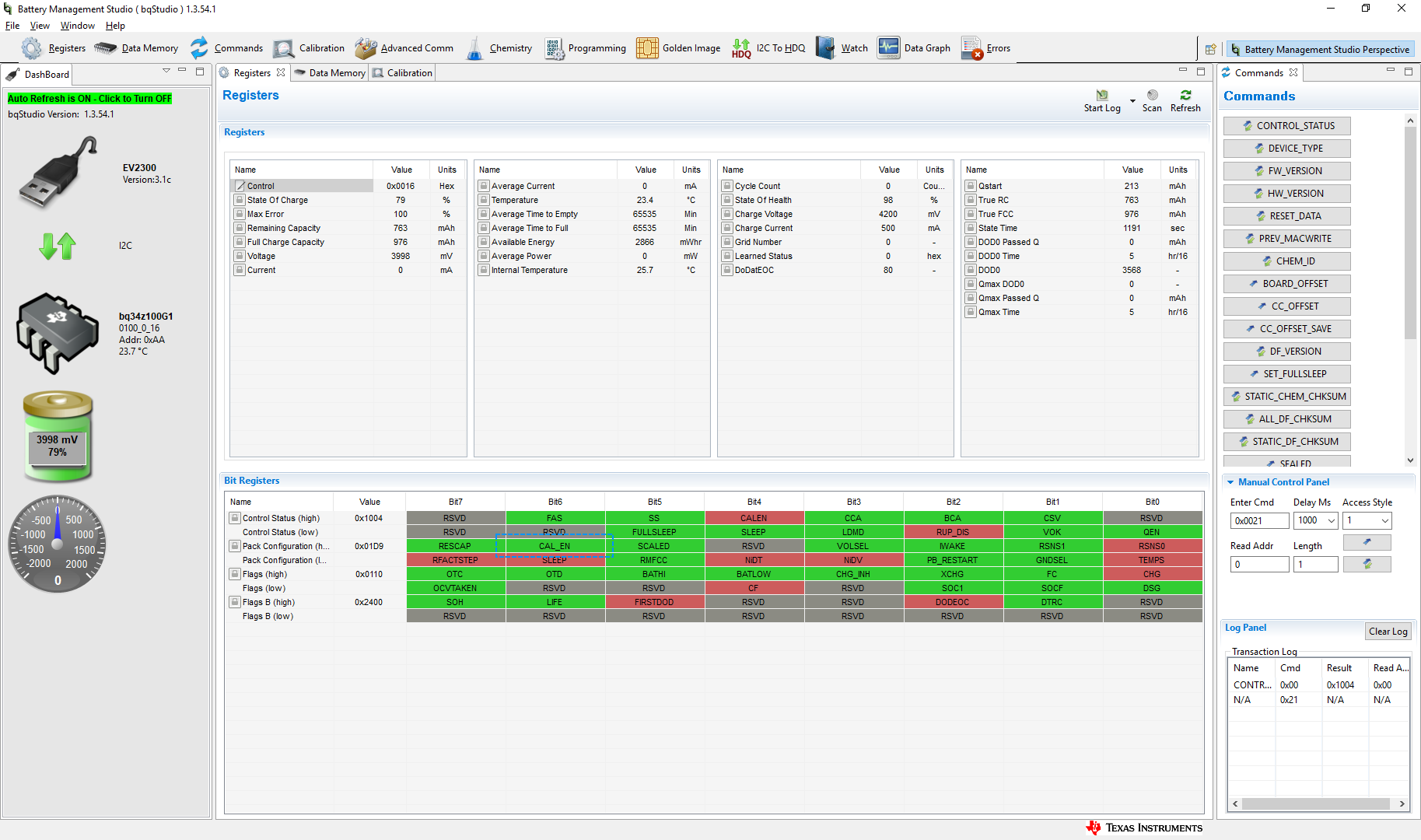

I tried setting the CAL_EN flag but that did not help:

I would appreciate all help regarding this issue. Also is there anything else I need to know before setting this gauge?

over 7 years ago

0 Bryan Kahler over 7 years ago

TI__Mastermind 25955 points

Hi Lukasz,

Please do not use battery management studio 1.3.54.1 with the bq34z100-g1 when attempting calibration. Please install the latest version called 'BQSTUDIOTEST' from www.ti.com/.../bqstudio

Please make sure either install the new version into a new directory, or completely remove the old version fo bqstudio. The BQZ file for the bq34z100-g1 that ships with 1.3.54.1 may cause issues with calibration.

After installing the new version, please load as normal and use the 'Calibration' Tab to calibrate your device.

Sincerely,
Bryan Kahler

0 Lukasz Przenioslo over 7 years ago in reply to Bryan Kahler

Expert 2630 points

Hello,
Thank you for answer. Is there any explanation available for when to use which tool? I thought the "test" version was for simulation purposes when the target is not available... What is the exact conversion here?

0 Lukasz Przenioslo over 7 years ago in reply to Bryan Kahler

Expert 2630 points

Could you tell me either there is a really comprehensive guide that tells what exactly to do at which step in order to configure the whole device for a certain battery? I find the one in datasheet very roughly described.

0 Bryan Kahler over 7 years ago in reply to Lukasz Przenioslo

TI__Mastermind 25955 points

Hi Lukasz,

The comprehensive guide that describes the steps with respect to all chemistry is found in Section 8 of the Datasheet.

Sincerely,
Bryan Kahler
