LM5022: Schematic check

Robin Yu

Intellectual 2190 points

Part Number: LM5022

Hi team,

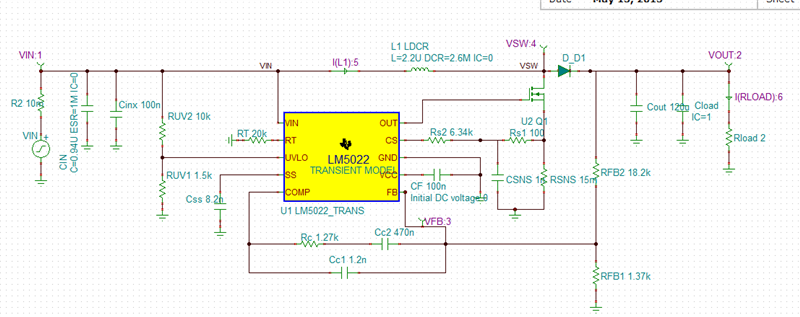

I have done a design using webench and do some modification, could you please help double check this?

Vin=12V(10~14V), Vout=18V, Iout(max)=9A,

Robin

over 7 years ago

0 Jasper Li over 7 years ago

TI__Mastermind 46905 points

the engineer supporting this device will reply your question next week

0 Youhao Xi over 7 years ago in reply to Jasper Li

TI__Guru* 78400 points

Thank you for considering the LM5022. The schematic looks good.

0 Robin Yu over 7 years ago in reply to Youhao Xi

TI__Intellectual 2190 points

Hi Youhao,

Attachment is the datasheet of MOS and Diode customer selects.

For Diode, the peak power consumption would be more than 10W.

Do you have any suggestion for this two components selection? Thanks.

Robin

DMN3010LFG.pdf

SBR30A100CTB.pdf

0 Youhao Xi over 7 years ago in reply to Robin Yu

TI__Guru* 78400 points

10W in the diodes of D2PAK seems excessive. I also did an estimate of the power dissipation in the MOSFETs and it can be >4.5W in a 3x3 package. I am not very comfortable with either one. You need good heatsink for these parts for thermal management.
