LM25141: About default switching frequency of WEBENCH

Hide

Guru 21045 points

Part Number: LM25141

Hi Team,

We would like to simulate LM25141 at the following conditions.

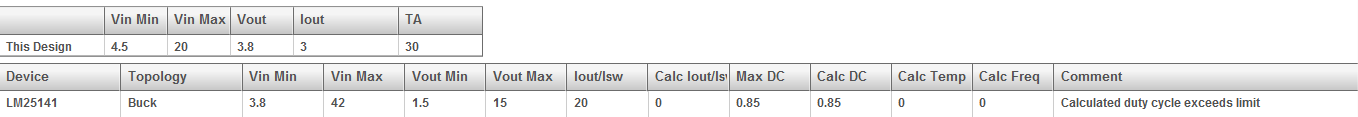

However, we can’t simulate and the following screens are displayed.

[Conditions]

-VIN=4.5V(min) to 20V(max)

-VOUT=3.8V

-IOUT=3.0A

-Fsw=440kHz

I guess that the minimum OFF time is not appropriate if the default switching frequency of WEBENCH is 2.2MHz.

-According to datasheet, minimum OFF time is 100ns(max)

-According to this conditions, minimum OFF time is around 68.1ns

Is my understanding correct?

If yes, could you please improve the default switching frequency of WEBNECH?

Regards,

Kanemaru

over 7 years ago

0 Katelyn Wiggenhorn over 7 years ago

TI__Genius 11040 points

Hi Kanemaru,

I understand your test conditions, and I replicated your conditions and see the same results. I will look into your request further, and I will provide feedback about the WEBENCH set up.

Best Regards,
Katelyn Wiggenhorn

0 Hide over 7 years ago in reply to Katelyn Wiggenhorn

Guru 21045 points

Hi Katelyn-san,

Thank you for your prompt reply.

I’m looking forward to hearing from you.

Regards,

Kanemaru

0 Harish K R over 7 years ago in reply to Hide

TI__Intellectual 2320 points

Hi Kanemaru,

We are working on the issue. We will keep you posted on the updates for the same.

Thanks and Regards,

Harish

0 Hide over 7 years ago in reply to Harish K R

Guru 21045 points

Hi Harish-san,

Thank you for your response.

I’d greatly appreciate your verification.

Regards,

Kanemaru

0 Veeranna Pyati over 7 years ago in reply to Hide

TI__Prodigy 310 points

Hi Kanemaru,

We have fixed the issue,soon it will get reflected on ti.com.

Thanks.

Thanks and Regards,
Veeranna

0 Hide over 7 years ago in reply to Veeranna Pyati

Guru 21045 points

Hi Veeranna-san,

Thank you for your kind support.

I understand. Thank you very much.

Regards,

Kanemaru

0 Veeranna Pyati over 7 years ago in reply to Hide

TI__Prodigy 310 points

Hi Kanemaru-san,

The fix is already on ti.com.

Below is the WEBENCH design for your conditions [VIN=4.5V(min) to 20V(max), VOUT=3.8V, IOUT=3.0A & Fsw=440kHz]

https://webench.ti.com/appinfo/webench/scripts/SDP.cgi?ID=DABFD61899B87730

Kindly verify the same and let us know if you need any further assistance.

Thanks and Regards,

Veeranna

0 Hide over 7 years ago in reply to Veeranna Pyati

Guru 21045 points

Hi Veeranna-san,

I confirmed your WEBENCH.

I greatly appreciate your cooperation.

Regards,

Kanemaru

0 Veeranna Pyati over 7 years ago in reply to Hide

TI__Prodigy 310 points

Hi Kanemaru-san,

Thanks for the confirmation.

Thanks and Regards,

Veeranna
