On the given SIMPLIS Model of the UCC256301, can I use POP Trigger in the simulation and where should I connect the perturbation so I can see the Bode Plot of it? I also tried putting the AC source on the Vout side but still no result on the simulation.

over 7 years ago

0 Peter Meaney over 7 years ago

TI__Mastermind 31580 points

Hi Carlo,

I have contacted the applications team that support this product and you should see a response later today.

Regards

Peter

0 Benjamin Lough over 7 years ago in reply to Peter Meaney

TI__Mastermind 27145 points

Hi Carlo,

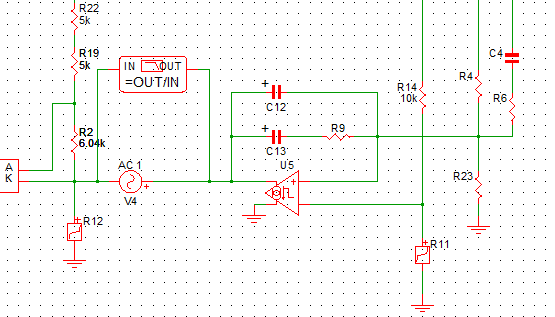

Please connect the perturbation between Vout and the top of the feedback resistor divider. Here is an example of using POP to obtain bode plot in the UCC25630x simplis model 5428.UCC25630x_SIMPLIS_for_Carlo.zip
