TPS54331: The output is higher than set up

nightingale

Part Number: TPS54331

Dear,

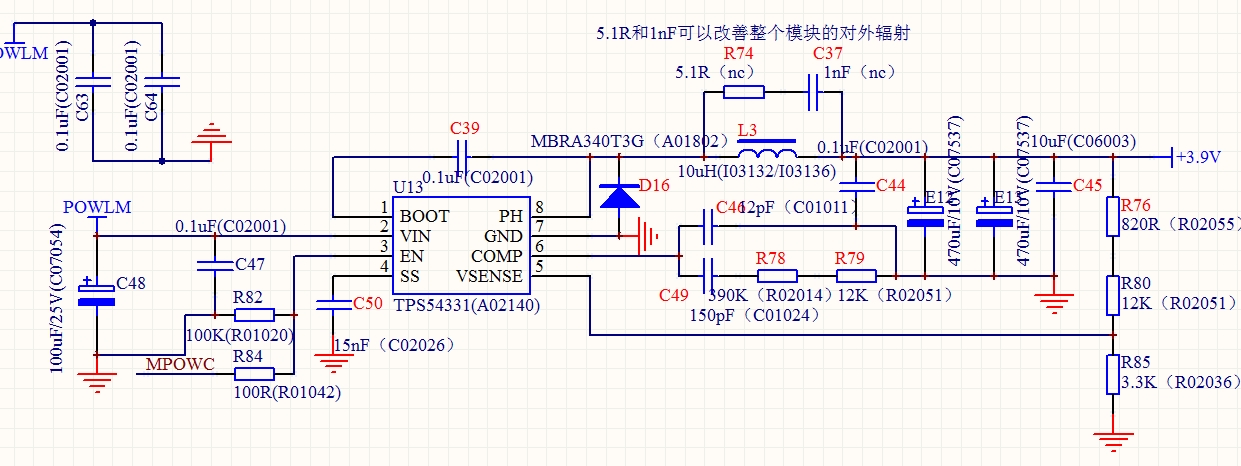

Look at the Sch below.

EN PIN : 3.3V

VIN PIN: 12V

The output should be 3.9V. But when test it, the output is 9v. Can you give some advise? THANK YOU.

0 Jason Wang (BSR-MV) over 7 years ago

hi,
Update schematic as below:
C49 change to 1nF
R78 change to 0 ohm
Let me know the test result after the changing.

0 nightingale over 7 years ago in reply to Jason Wang (BSR-MV)

There are almost no output. The output is 0.8V if I change the SCH as you say.

0 Edwin Zang over 7 years ago in reply to nightingale

Hello Joyce,
Please upload SW, COMP, and Vout waveform?
what's about loading?

best regards
Edwin.

0 Jason Wang (BSR-MV) over 7 years ago in reply to Edwin Zang

Hi,

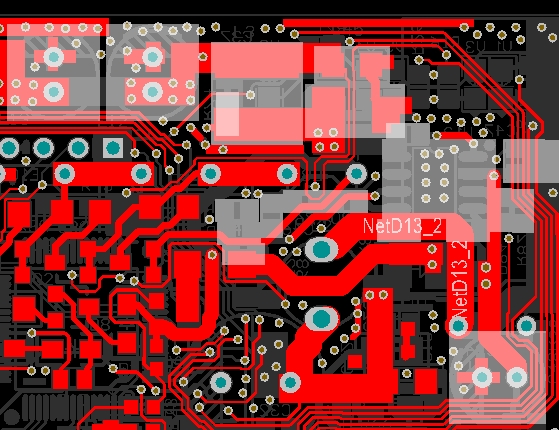

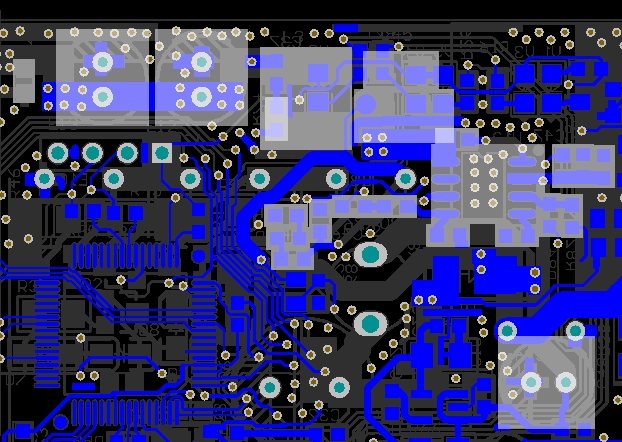

i need another Layout image which intigrates part numbers.
