WEBENCH® Tools/LM5085: Efficiency Drop

Mahboob Khan Mohammed

Part Number: LM5085

Tool/software: WEBENCH® Design Tools

Hello everyone,

I wonder why the efficiency is dropping drastically at the output current between 3.5 to 5 A.

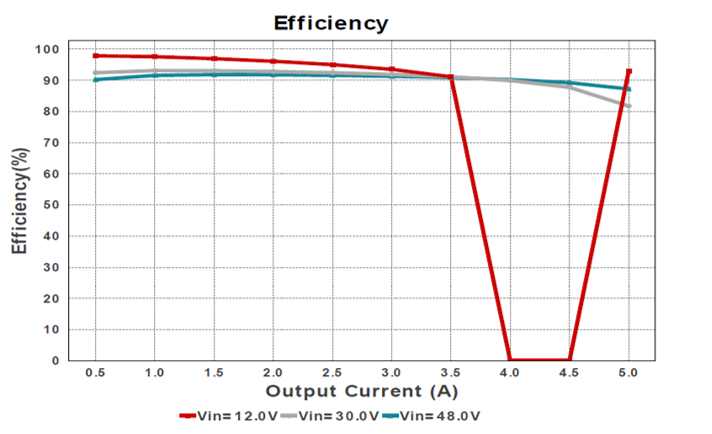

The figure shows the efficiency vs current graph generated through Webench, the complete Webench design report is in the attachment.

Please explain why this problem is occurring and what is the solution.

Thankswebench_design_12-48_in_11_out_5A.pdf

over 7 years ago

0 Arief Hernadi over 7 years ago

TI__Mastermind 23845 points

Hi,

This could be because at that current, you are at VIN = 12V and VOUT = 11V and you probably have some losses that the output cannot be maintained during dropout condition

Thanks
-Arief

0 Mahboob Khan Mohammed over 7 years ago in reply to Arief Hernadi

Intellectual 255 points

Arief, Thank you for the response.

Losses??? what losses it could be that causes efficiency to drop down to zero, is there any soulution for that?

Thanks

0 Arief Hernadi over 7 years ago in reply to Mahboob Khan Mohammed

TI__Mastermind 23845 points

I will forward this to our webench group

Thanks
-Arief

0 Atul_Kulkarni over 7 years ago in reply to Arief Hernadi

Genius 4910 points

Hi Mahmoob,

We are looking into the issue.We will get back to you on this .

Regards,
Atul

0 Mahboob Khan Mohammed over 7 years ago in reply to Atul_Kulkarni

Intellectual 255 points

Thanks, will be waiting for your response.

0 Atul_Kulkarni over 7 years ago in reply to Mahboob Khan Mohammed

Genius 4910 points

Hi Mahmoob,

Sorry for holding you too long.
The issue has been resolved and the updated design will be out on ti.com in the next release.
Thanks for your patience.

Regards,
Atul
