TPS61081: How to estimate whether the chip has broken?

user4999129

Part Number: TPS61081

Hi, everyone:

I test my backlight circuit base on TPS61081. It do not work since I do some welding on it. Maybe it has been broken due to short circuit caused by the soldering tin.

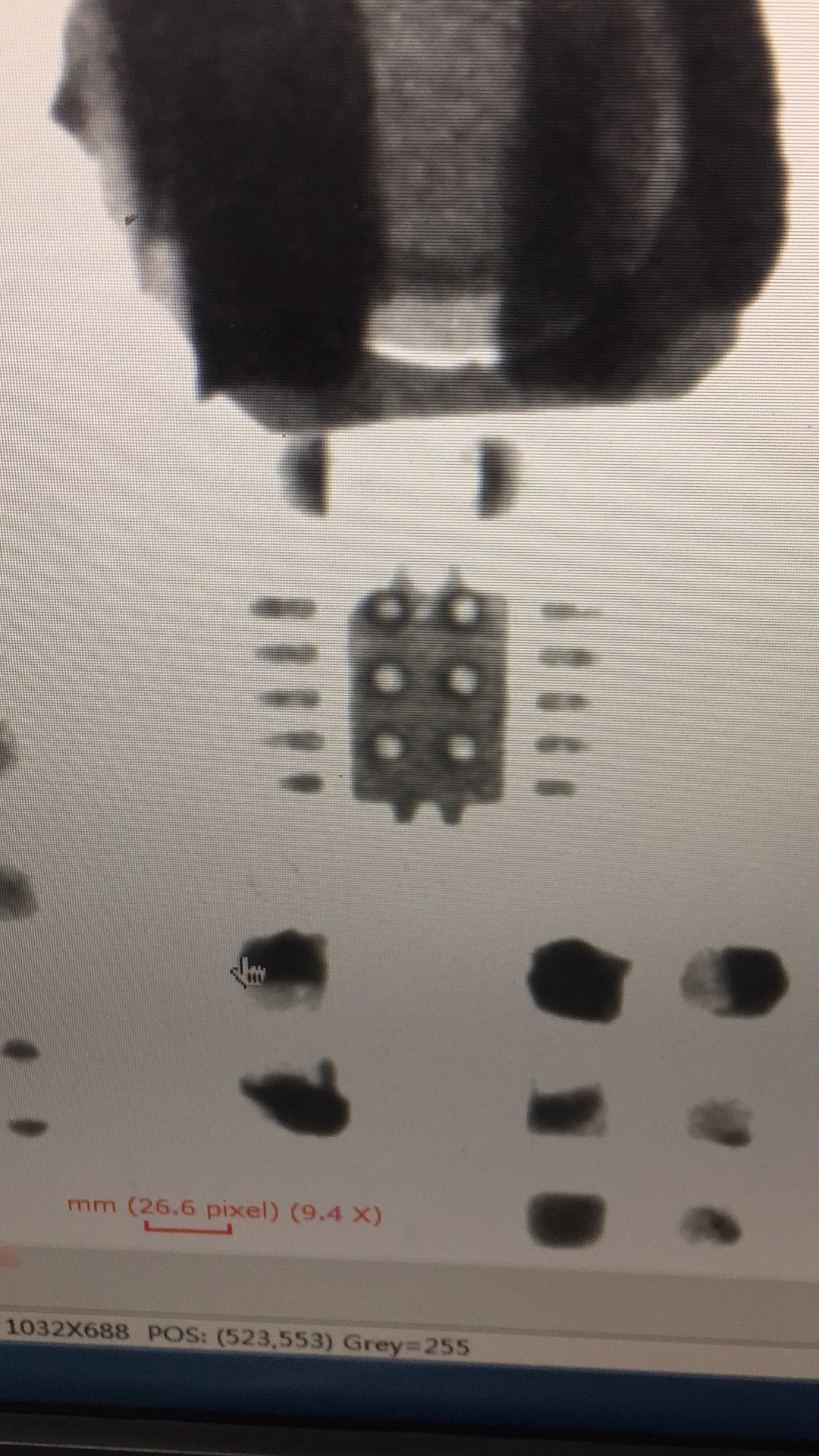

I clean it and take a picture by X-Ray:

Well, I want to know how to estimate whether the chip has broken?

over 7 years ago

0 Youhao Xi over 7 years ago

TI__Guru* 78070 points

This is really hard to tell just by the info in your post. The simplest way is to replace with a new IC and solder carefully and inspect for any solder bridge or debris before powering up. If it is still not work, it may be owing to your circuit board problem.

0 user4999129 over 7 years ago in reply to Youhao Xi

Intellectual 550 points

Hi, Youhao:

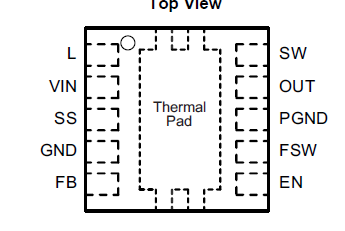

Is there any possibility to demage the chip If soldering tin connect PIN 'OUT' with PIN 'PGND'?

It 's hard to replace the chip because of the footprint. So I want to analyze it clearly first.

0 Youhao Xi over 7 years ago in reply to user4999129

TI__Guru* 78070 points

Yes it can damage the part: OUT short to GND will create a short circuit from input through the inductor and internal diode and there is no current limit to prevent damage.

0 user4999129 over 7 years ago in reply to Youhao Xi

Intellectual 550 points

Thanks!
