LM76003: LM76003 schematic review

Iven Xu

Intellectual 2090 points

Part Number: LM76003

Hi AE/SE team,

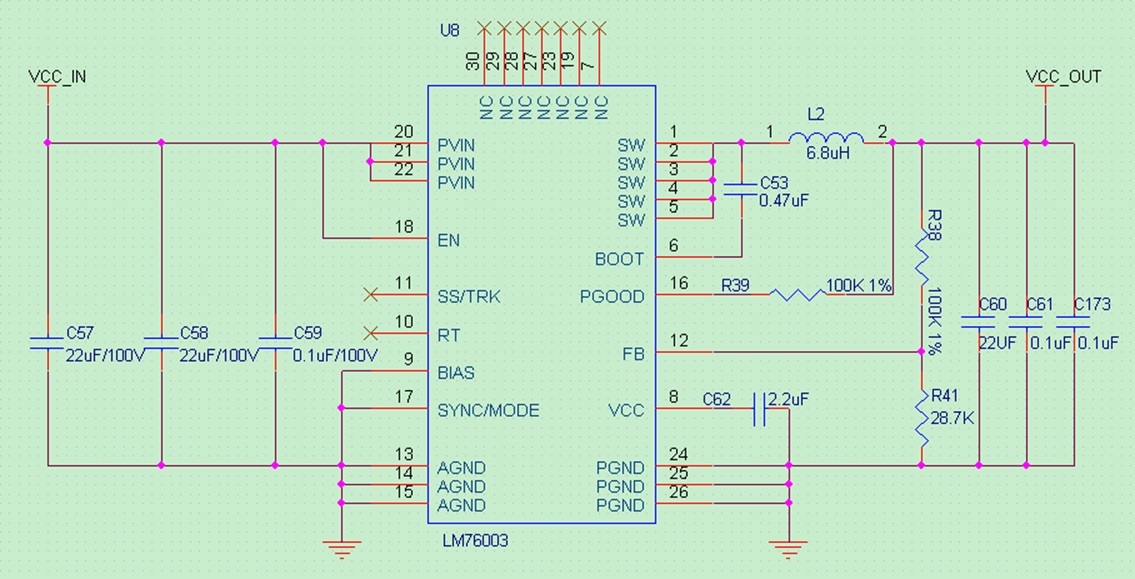

Could you please help review below design schematic with LM76003?

Vin:48V

Vout:4.5V

Iout:<2.5A

Best Regards

Iven Xu

over 7 years ago

0 Iven Xu over 7 years ago

TI__Intellectual 2090 points

by the way,

could you please help recommend a MOSFET or efuse to achieve the input Reverse Polarity Protection? thanks.

Best Regards
Iven Xu

0 Juan Paulo Fung over 7 years ago in reply to Iven Xu

TI__Expert 3870 points

Hi Iven,

Please increase the value of the output capacitor to at least 47uF, this should help you with the transient response as well (2x 47uF) is preferred. Everything else looks okay. For your PCB layout please make sure you follow the recommended component placement and routing as outlined in our datasheet. For front-end reverse polarity protection please take a look at the following Application Note/ reference design:

www.ti.com/.../tiduc42.pdf

Best Regards,
-JP
