WEBENCH® Tools/LM5175: Error importing WEBENCH schematic to Eagle

Sean Dever

Part Number: LM5175

Tool/software: WEBENCH® Design Tools

Hello!

I'm trying to import a Buck/Boost schematic from WEBENCH to Eagle (V 8.7.1) but I'm getting the following error message:

Loading /Users/sean/Documents/Eagle 4/2018-03-21_23-25-15/2018-03-21_23-25-15.sch ...

Error:

line 1, column 61540: redefinition of name 'IO' in tag <attribute>

I'm using the following parameters in WEBENCH:

Any idea what can be done to fix this issue?

Thanks in advance!

-Sean

over 7 years ago

0 Youhao Xi over 7 years ago

TI__Guru* 78110 points

Can you contact Eagle vendor for support, and ask them what need to be done in the native source file which I believe is Altium? Meanwhile, I am forwarding this to our Webench expert and see if they have any good suggestions.

0 Janardhan S over 7 years ago

Prodigy 140 points

Hi Sean,

The Schematic export issue is caused due to "NA" foot print of D2 in WEBENCH BoM. Please try any one of the below methods to resolve the issue.

Method 1 :

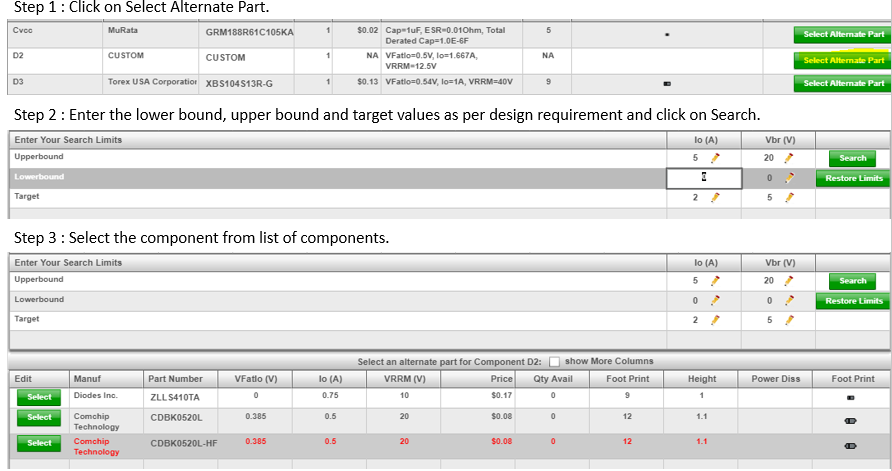

Method 2 :

Regards,

Janardhan S

Power management

Power management forum

WEBENCH® Tools/LM5175: Error importing WEBENCH schematic to Eagle
