LM3644: DSBGA package Problem

Marcin Brylak

Prodigy 205 points

Part Number: LM3644

Dear TI,

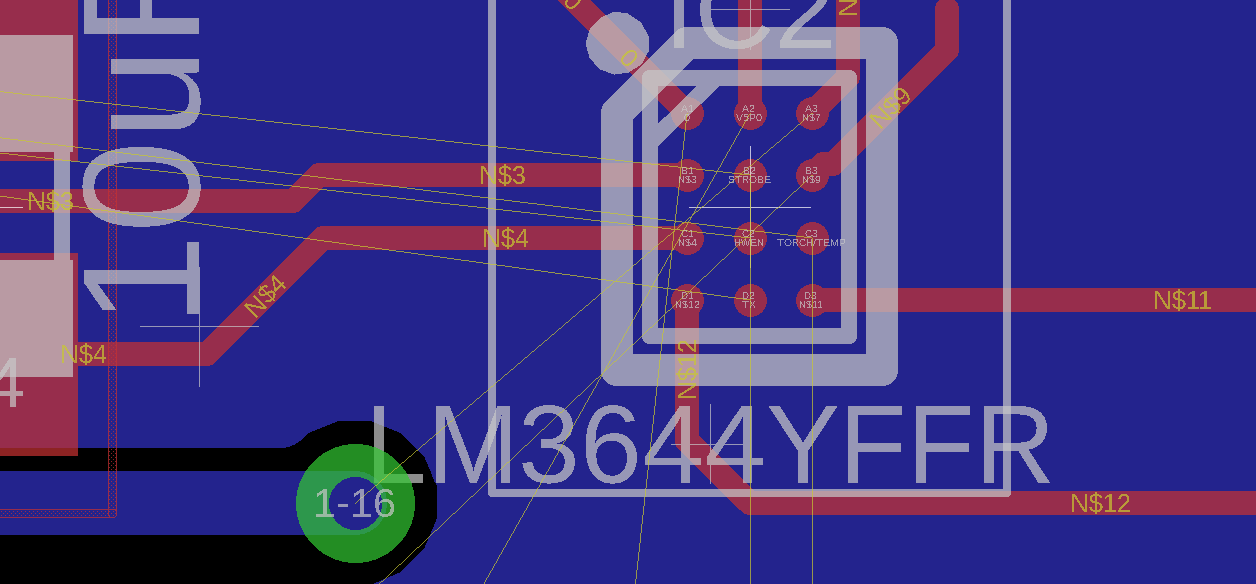

I am doing now an Eagle layout with LM3644 IC which is only in DSBGA12 package available. I have no idea how

to connect 2 pads which are in middle (STROBE and HWEN).

Could you please give me some tips or possibilities?

over 7 years ago

0 Angelos Tsiros over 7 years ago

TI__Intellectual 2140 points

Hi,

You can place a small via at the center of the pads and route the traces on a different layer. You would have to fill the via to ensure good device mounting. The via can be as wide as the pad.

Regards,
Angelos Tsiros
