LM2623: Boost regulator

shammi kaplesh

Part Number: LM2623
Other Parts Discussed in Thread: TPS61089

Hi,

Our requirement is to generate 10v (200mA-500mA) output with 1- 1.5 volt (500mA) Input. Is it possible to generate this voltage range by using LM2623 ?

Regards,

SHAMMI

over 7 years ago

0 Zack Liu over 7 years ago

TI__Mastermind 34231 points

Hi Shammi,

LM2623 has a switch peak current limit 2.85A(typ). When vo is 10V@500mA, the input current is higher than the current limit value. And also lm2623 has a 1.1V startup voltage. I don't understand why you say the input current is 500mA?

Regards,
Zack

0 shammi kaplesh over 7 years ago in reply to Zack Liu

Expert 1475 points

Hi Zack,

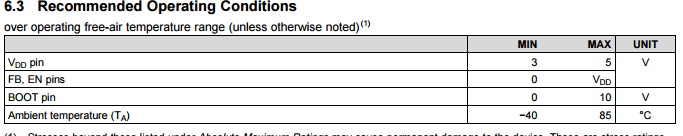

In the data sheet the recommended operating voltage mention is minimum 3V. That is the reason we raised this question.

our requirement is INPUT;1.1-1.5V and OUTPUT;10V. Is it Possible ?

Regards,

SHAMMI

0 Zack Liu over 7 years ago in reply to shammi kaplesh

TI__Mastermind 34231 points

Hi Shammi,

VDD is the power supply for internal circuitry and it's range is 3-5V. What's the load current at 10V?

Regards,
Zack

0 shammi kaplesh over 7 years ago in reply to Zack Liu

Expert 1475 points

I have Vin 1.1V-1.5V, need to generate 10v. Is this can be done by this IC ?

0 Zack Liu over 7 years ago in reply to shammi kaplesh

TI__Mastermind 34231 points

Hi Shammi,

It depends on the output current. When the load current is small and will not trip the current limit, it can generate 10V. So I'm asking you the load current of output.
On your first post, you said the output current is 500mA, and the input is 1-1.5V(500mA). The boost converter input current will be much higher than output current.

Regards,
Zack

0 shammi kaplesh over 7 years ago in reply to Zack Liu

Expert 1475 points

Hi Zack,
Thanks for your reply, load current at output will be upto 750mA.

Regards,
SHAMMI

0 Zack Liu over 7 years ago in reply to shammi kaplesh

TI__Mastermind 34231 points

Hi shammi,

LM2623 is not suitable. Vo is 10V@0.75A and Vin is 1.1V, the input current will be up to 8A. What's this application be used for? The input is only one 1.5V battery?

Regards,
Zack

0 shammi kaplesh over 7 years ago in reply to Zack Liu

Expert 1475 points

Hi zack,

Solor panel(6Volt 5W output) is connected to VIN, and our vo requirement is 10V@ upto 0.75A.

Regards,
SHAMMI

0 Zack Liu over 7 years ago in reply to shammi kaplesh

TI__Mastermind 34231 points

Hi Shammi,

If the solor panel output voltage is 6Volt, LM2623 is able to generate a 10V @ 0.75A. You mean the minimum voltage of solor panel is 1.1V? I don't understand why you said the input range is 1.1-1.5V?

Regards,
Zack

0 shammi kaplesh over 7 years ago in reply to Zack Liu

Expert 1475 points

Hi Zack,

currently we have used TPS61089RNRR in our design. After connecting solar panel with our board, under direct sunlight we are getting 5-5.8V,
and under low sunlight condition voltage is around 1.5v.

Regards,
SHAMMI

0 Zack Liu over 7 years ago in reply to shammi kaplesh

TI__Mastermind 34231 points

Hi shammi,

TPS61089 is a good choice. Is there any possibility to have an external 3.3V on your board? If so, use external 3.3V and connect the 3.3V to VIN pin as the power supply of IC.

Regards,
Zack

0 Zack Liu over 7 years ago in reply to shammi kaplesh

TI__Mastermind 34231 points

Hi Shammi,

TPS61089 is a good choice. Can you find another 3.3V or 5V on the board that can be connected to VIN pin?

Regards,
Zack
