LM5160-Q1: Please verify spec's in datasheet

Viktorija Cecil

Mastermind 18491 points

Part Number: LM5160-Q1
Other Parts Discussed in Thread: LM5160,

Team,

Please help with a couple of questions from my customer:

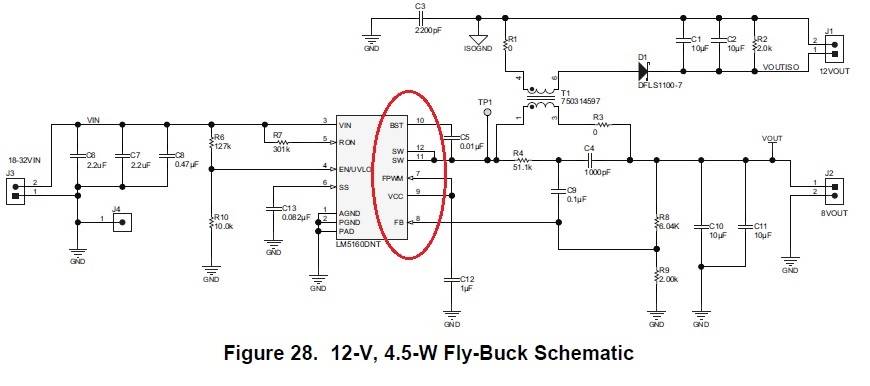

On the datasheet for LM5160Q1 there are errors with the pin numbers. See the schematic below from page 22:

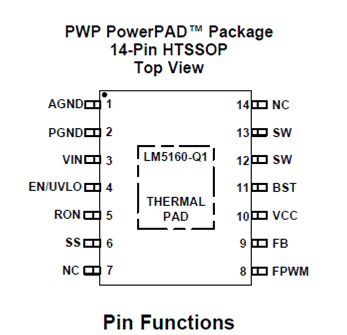

Compared to the pin definitions in the same document:

Please clarify this confusion.

Do you have PCB layout example for this application circuit? I would like to reference it for my design.

Thanks

Viktorija

over 7 years ago

0 Brani Dubocanin over 7 years ago

TI__Expert 4100 points

Hello Viktorija,
Thank you for pointing out these inconsistencies .
I will clarify this with responsible product engineer and get back to you soon.
Regards
Brani

0 Brani Dubocanin over 7 years ago in reply to Brani Dubocanin

TI__Expert 4100 points

Hello Viktorija,

Please find attached document with schematic and layout example.

Schematic and Layout.docx

Regards

Brani

0 Brian Angiel over 7 years ago in reply to Brani Dubocanin

TI__Expert 4070 points

Hi Brani,

Thanks for the feedback. Just to confirm, the pinout in the attached schematic reflects the correct pinout of the device?

Thanks!

Brian

0 Timothy Hegarty over 7 years ago in reply to Brian Angiel

TI__Guru 73652 points

Hi Brian,

There are two packages available within the LM5160/A/-Q1 family: WSON-12 and HTSSOP-14. Only the HTSSOP-14 is available for the LM5160-Q1. Please use the pinout applicable for that (package designator is PWP).

Regards,

Tim
