TPS40057: Shutdown timing

Kuramochi Tadahiko

Guru 28715 points

Part Number: TPS40057

Hi,

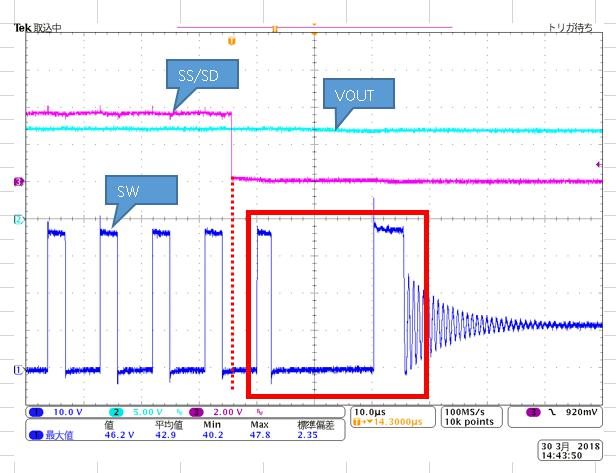

As below, switching pulses appear after SS/SD goes low.

Though I suppose to stop switching immediately, is this correct work?

Best Regards,

Kuramochi

over 7 years ago

0 David Baba over 7 years ago

TI__Mastermind 40040 points

Hello TQ,

Is the SS/SD scope shot measured right at the SS/SD pin? Can you measure with Short Gnd lead and right at the SS/SD pin and also decrease the scale to 100mV/division ?

Thanks.

David.

0 David Baba over 7 years ago

TI__Mastermind 40040 points

Hello TQ,

Also could you please share the schematic, with Vin/Vout requirements?

Thanks.

David.

0 David Baba over 7 years ago in reply to David Baba

TI__Mastermind 40040 points

Discussion continued directly with end user through email.
