LM5141: About role of “B170-13-F(D2)”

Hide

Guru 21045 points

Part Number: LM5141

Hi Team,

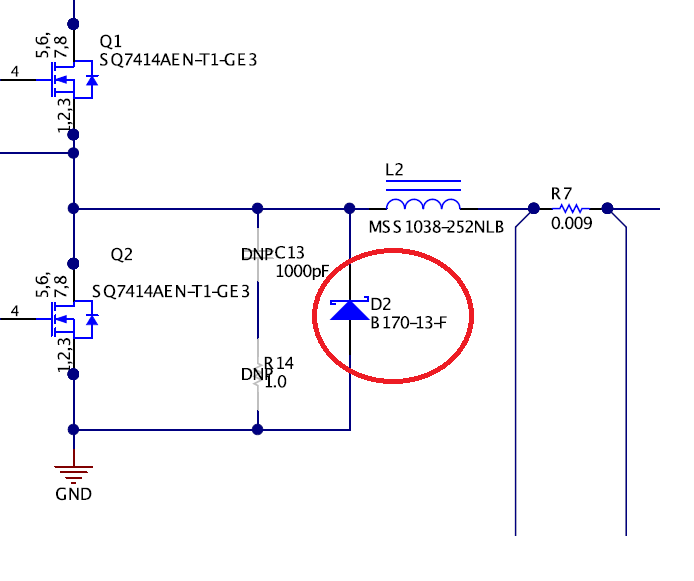

Could you please let us know the role of “B170-13-F(D2)” on LM5141 EVM?

We would like to remove “D2” because we suppose that efficiency is improved.

Regards,

Kanemaru

over 7 years ago

0 David Baba over 7 years ago

TI__Mastermind 40040 points

Hello Hideto san,

The role of the diode is for it to conduct during the dead times between Top and bottom FET conduction times. The additional diode prevents the body diode of the bottom FET to conduct. As a result Reverse recovery of the diode is much lower than that of the body diode. this improves switching losses.

Hope this helps?

David.

0 Hide over 7 years ago in reply to David Baba

Guru 21045 points

Hi David-san,

Thank you for your prompt reply.

I understand. Thank you very much.

Regards,

Kanemaru
