BQ24640: bq24640 / recommended capacitance range of super cap.

Pranesh Kulkarni50

Part Number: BQ24640
Other Parts Discussed in Thread: LM5116

We are looking for a Super Capacitor charger IC for our R&D activity. I found BQ24640 is suitable for our application. Planning to add 5 capacitors each of 3000F @ 2.7V in series to make 600F @ 13.5V. Please suggest.

over 7 years ago

0 Jing Zou over 7 years ago

TI__Mastermind 20530 points

The bq24640 is the only super cap charger in our current portfolio.

It can charge the super cap configuration you have listed.

0 Jing Zou over 7 years ago

TI__Mastermind 20530 points

The bq24640 is the only super cap charger in our current portfolio.

It can charge the super cap configuration you have listed.

0 Pranesh Kulkarni50 over 7 years ago in reply to Jing Zou

Prodigy 180 points

Dear Jing,

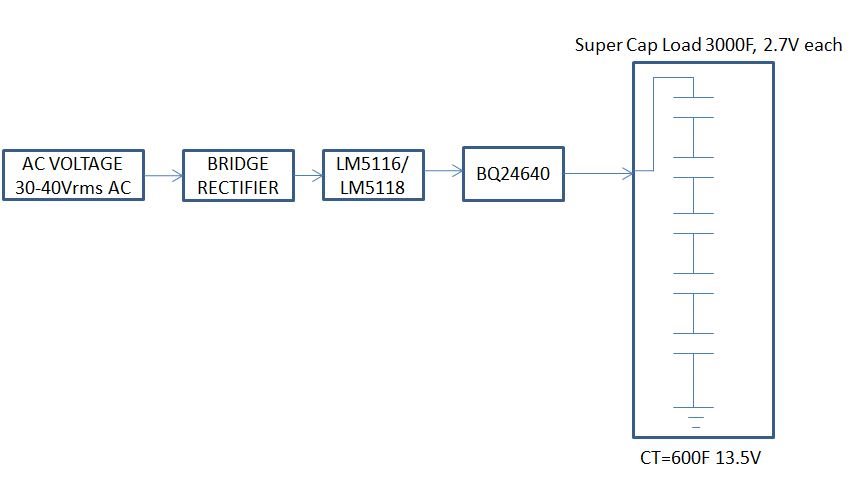

Thanks for your reply. Please have a look on the attached diagram and suggest. We are planning to use LM5116 DC-DC Converter to power ON BQ24640.

0 Jing Zou over 7 years ago in reply to Pranesh Kulkarni50

TI__Mastermind 20530 points

Based on your block diagram, the bq24640 should work.

0 Pranesh Kulkarni50 over 7 years ago in reply to Jing Zou

Prodigy 180 points

Dear Jing,

Thanks for your reply. Will implement the circuit.

0 Pranesh Kulkarni50 over 7 years ago in reply to Pranesh Kulkarni50

Prodigy 180 points

Dear Jing,

Can I use the BQ24640 in Automobile Industry, is it Auto qualified. Please suggest.

0 Jing Zou over 7 years ago in reply to Pranesh Kulkarni50

TI__Mastermind 20530 points

The bq24640 is not automotive qualified.

What is your end equipment? Is it aftermarket accessory for automotive? or is it built in the car?

If it is aftermarket, automotive qualified is probably not required.

0 Pranesh Kulkarni50 over 7 years ago in reply to Jing Zou

Prodigy 180 points

Dear Jing,

Thanks for your reply. We will use BQ24640.

0 Pranesh Kulkarni50 over 7 years ago in reply to Pranesh Kulkarni50

Prodigy 180 points

Dear Jing,

How are you doing? We have completed the schematics of BQ24640. Can you please review and help us to find the problems if any?

0 Jing Zou over 7 years ago in reply to Pranesh Kulkarni50

TI__Mastermind 20530 points

Please upload your schematic. Thanks.

0 Pranesh Kulkarni50 over 7 years ago in reply to Jing Zou

Prodigy 180 points

Dear Jing,

Please find the attached schematics. Our Input range will be from 10V-12Vdc. Please review.1854.SCHEMATIC1 _ PAGE1.pdf

0 Jing Zou over 7 years ago in reply to Pranesh Kulkarni50

TI__Mastermind 20530 points

1. The bq24640 is a buck charge controller. If your input is only 10 to 12V, then the 13.5V capacitor bank would not be fully charged up.

2. The LC output filter is selected to give a resonant frequency of 12 kHz to 17 kHz, please double check your input and output capacitance based on the datasheet section 7.3.6, 8.2.2.2 and 8.2.2.3

0 Pranesh Kulkarni50 over 7 years ago in reply to Jing Zou

Prodigy 180 points

Dear Jing,

Thanks a lot for your response. We are planning to reduce the number of capacitors in series to reach 10.8V. And will update the Input and Output Capacitors as per the datasheet.

Thanks a lot for your reply.
