TPS7B7701-Q1: Current limit in case of VOUT short to ground

Hirotaka Matsumoto

Part Number: TPS7B7701-Q1

Hi all

Would you mind if we ask TPS7B7701-Q1?

How much is current limit in case of VOUT short to ground?
Is it the same as "VO in regulation" 0～300mA?

Kind regards,

Hirotaka Matsumoto

over 7 years ago

0 Jason Song over 7 years ago

TI__Mastermind 23361 points

Hi Matsumoto-san,

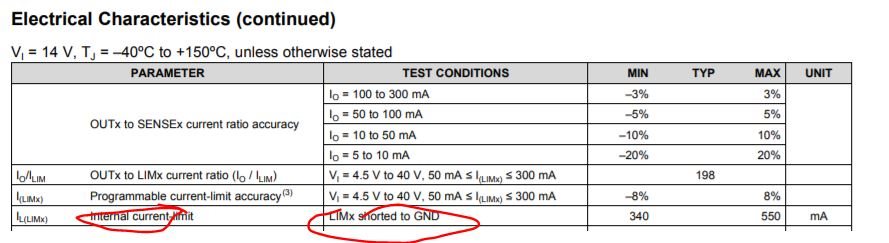

This device allows user to set current limit by adjusting current limit resistors with a +/- 8% accuracy. When LIMx is shorted to ground, the internal current limit is 340mA(min) and 550mA(Max).

Regards,
Jason Song

0 kai klaas69 over 7 years ago in reply to Jason Song

Guru 140200 points

Hi Jason,

I guess Hirotaka wants to know whether the current limiting (configured by RLIM) will work as expected even when Vout goes all the way down to 0V.

Kai

0 Hirotaka Matsumoto over 7 years ago in reply to kai klaas69

Guru 27585 points

Kai san

Yes, you are correct.

We would like to know in case of Vout=0V(short condition).

Kind regards，

Hirotaka Matsumoto

0 Jason Song over 7 years ago in reply to Hirotaka Matsumoto

TI__Mastermind 23361 points

Hi Matsumoto-san,

I have verified it on bench. When you limit the current limit through resistor, the limit is still there when vout is shorting to ground. For example, a 820 Ohms resistor at Ilim can limit the current limit to 300mA (+/-8% across temp). When the device's output is being shorted to ground, the current limit of the device is still 300mA. If Ilim is shorted to ground, at room, the current limit could go as high as 450mA.

Regards,
Jason Song

0 Hirotaka Matsumoto over 7 years ago in reply to Jason Song

Guru 27585 points

Jason san

Thank you for your reply!

OK, we got it.

Hirotaka Matsumoto
