LED driver solution consult

Jonas

Intellectual 540 points

Other Parts Discussed in Thread: LED171596A

Does TI have the solution that can meet below requirement ? please help suggest suitable solution. thanks

1 I2C control

2 LED number >60 PCS.

3 Global Brightness control

4 max 45mA current for LED

Jonas zhang

over 7 years ago

0 Jonas over 7 years ago

Intellectual 540 points

the product like below picture,please refer

0 Angelos Tsiros over 7 years ago in reply to Jonas

TI__Intellectual 2140 points

Hi,

I assume each LED needs to be independently controlled (on/off). Is this correct? If not, and multiple LEDs could be connected to a single LED string, how many LEDs could be connected in series?

Regards,
Angelos Tsiros

0 user5330034 over 7 years ago in reply to Angelos Tsiros

Prodigy 20 points

Hi Angelos:

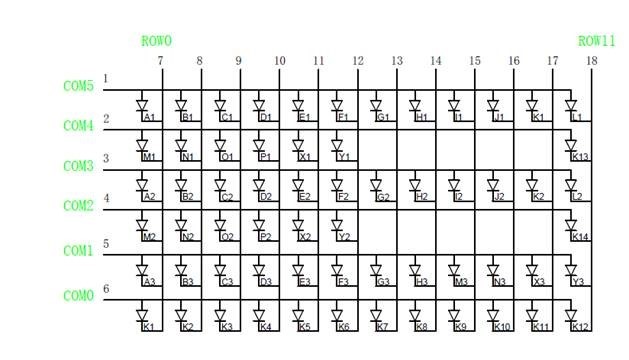

The LEDs are driven by scanning.

LED VF 3.2V, 20mA.

0 Angelos Tsiros over 7 years ago in reply to user5330034

TI__Intellectual 2140 points

Hi,

The closest device in my product line that would work in your application is LED171596A. It's using a time-multiplexing topology, which allows a max effective 15mA current per LED. You may need to tie 3 current sinks together to drive a single LED if you need 45mA of continuous curent or I can refer this to a different product line that may have a better solution. Please review the datasheet and let me know if this does not work.

Regards,
Angelos Tsiros

0 Jonas over 7 years ago in reply to Angelos Tsiros

Intellectual 540 points

hi Angelos:

LED171596A is preview status. how about is its schedule ? sample and productive ? And who can we aplly the sample from ?

Jonas

0 Randy Dahl over 7 years ago in reply to Jonas

TI__Intellectual 2090 points

Hi Jonas,

The LED171596A was RTM in March 2018 and is available now.

I am checking into this to get web updated to active.

Best regards,

Randy
