LMG1020: pinmap

[FAE] Andrew Wang

Genius 10685 points

Part Number: LMG1020

Hi Team,

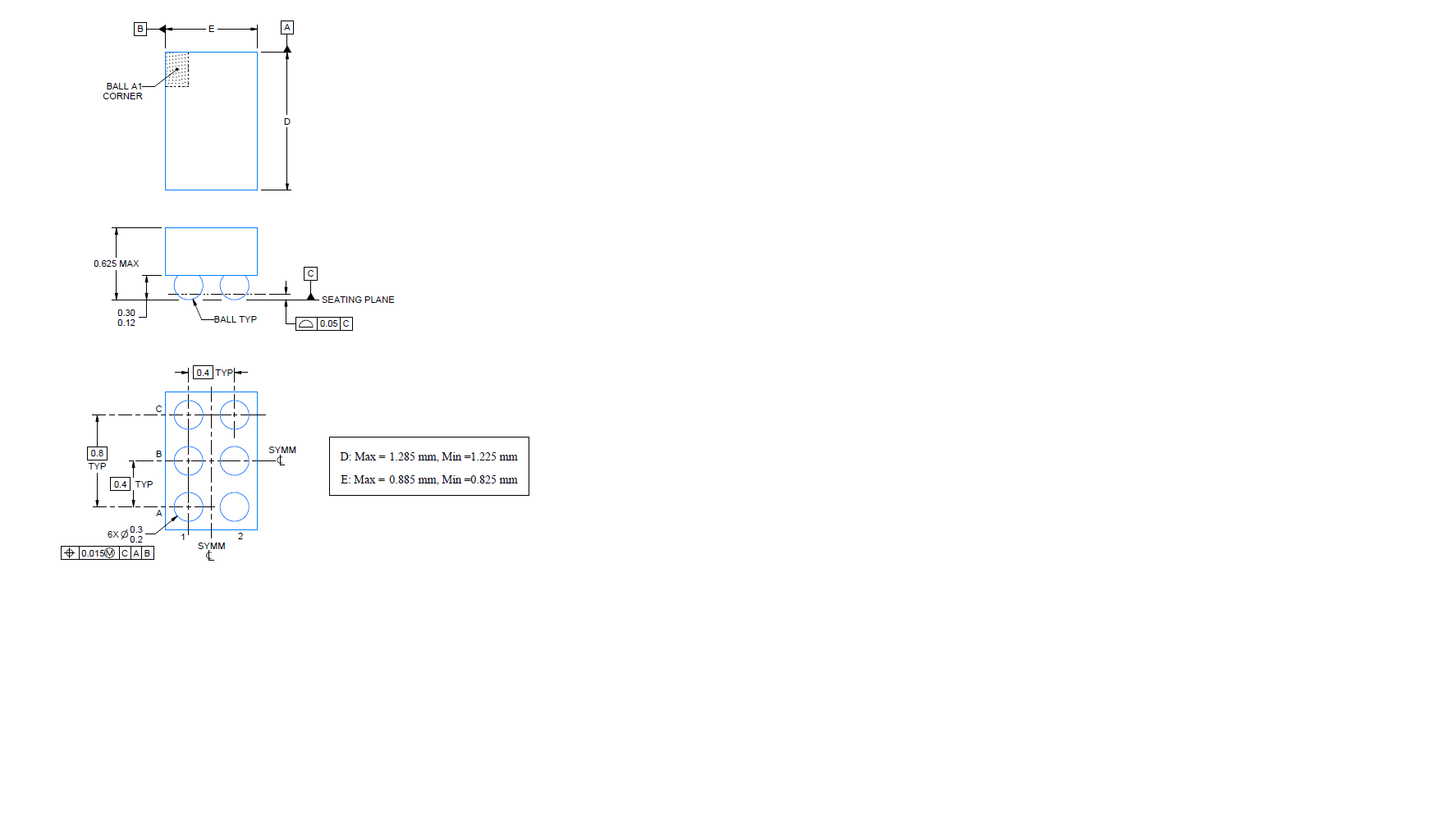

LMG1020 pinmap and package outline in the datasheet do not look the same.

If see closely, package outline shows A1, B1, C1, so on,

Our pin shows 1~6.

Please kindly help to fix it, thanks.

Andrew

over 7 years ago

0 Lixing Fu over 7 years ago

TI__Expert 3225 points

Hi Andrew,

Many thanks for your reminder. We will have more clear labeling later. For your information, the A1 would be pin 1 from the top view, and B1 is pin 2, and so on. Please let me know if you have any questions reading the package information.

Thanks and regards,
Lixing

0 [FAE] Andrew Wang over 7 years ago in reply to Lixing Fu

TI__Genius 10685 points

Please allow me to make clear.
1 = A1
2 = B1
3 = C1
4 = C2
5 = B2
6 = A2

Thanks Lixing!

0 Lixing Fu over 7 years ago in reply to [FAE] Andrew Wang

TI__Expert 3225 points

Hi Andrew,

You are correct. Thanks for making it clear. We will have this updated in our datasheet revision.

Thanks and regards,
Lixing
