LMR14020: lmr14020

Gaurav Valecha

Prodigy 75 points

Part Number: LMR14020

Hi ,

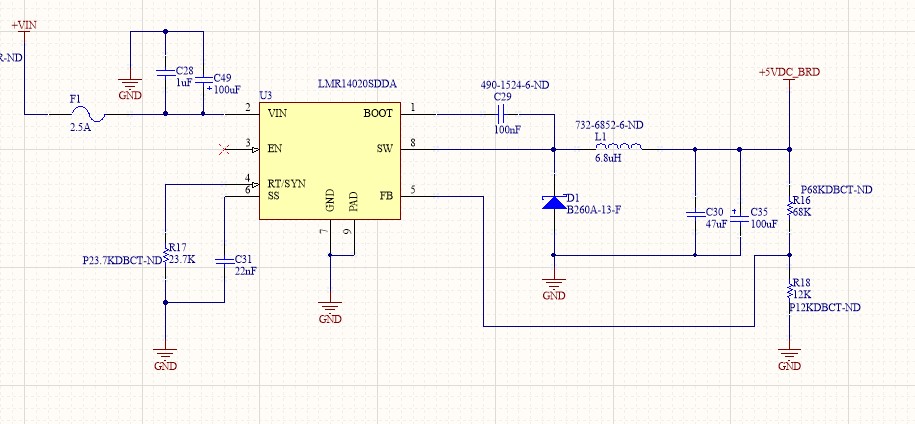

Please refer

The DC DC convetor is not genrating 5V output plus it is getting heat up

Please help

Gaurav

over 7 years ago

0 Andy Chen over 7 years ago

TI__Mastermind 34875 points

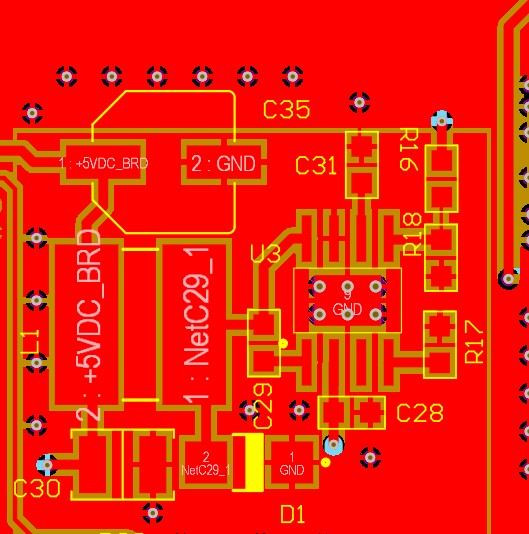

The layout is not good, did you test waveform on SW node?

0 Gaurav Valecha over 7 years ago in reply to Andy Chen

Prodigy 75 points

HI ,

Issue resolved D1 was wrongly soldered ,

Please comment on Layout

Gaurav

0 Andy Chen over 7 years ago in reply to Gaurav Valecha

TI__Mastermind 34875 points

Hi Gaurav,

bellow some suggestions:
1. Move C29 up
2. Place D1 on C29 position
3. Rotate C28 left 180 degree
4. Use more thick trace between U3 SW pin and inductor, D1
