TPS7A39: DSC LAND PATTERN DATA

Ryan,

A .bxl file was not available online so I put in a request on the website.

Best Regards,

Agi

Hello Ryan,

I have not seen the bxl file on your website yet.  Do you know when it will be available?

Best regards,

Agi

Hi Agi,

I will look into this and see if I can find out why the bxl file has not yet been released to the web.

Very Respectfully,
Ryan

Hi Agi,

It looks like the files are still being worked on. I will update you here as soon as they come available.

Very Respectfully,
Ryan

Hi Agi,

I apologize for the delay, but it looks like the *.bxl file is now properly linked to the product folder:

www.ti.com/.../pinout-quality

Very Respectfully,
Ryan

Hi Ryan,

I created a PCB footprint for Mentor Graphics from the bxl file and I notice that it is not the same as the recommended land pattern from the TI datasheet.

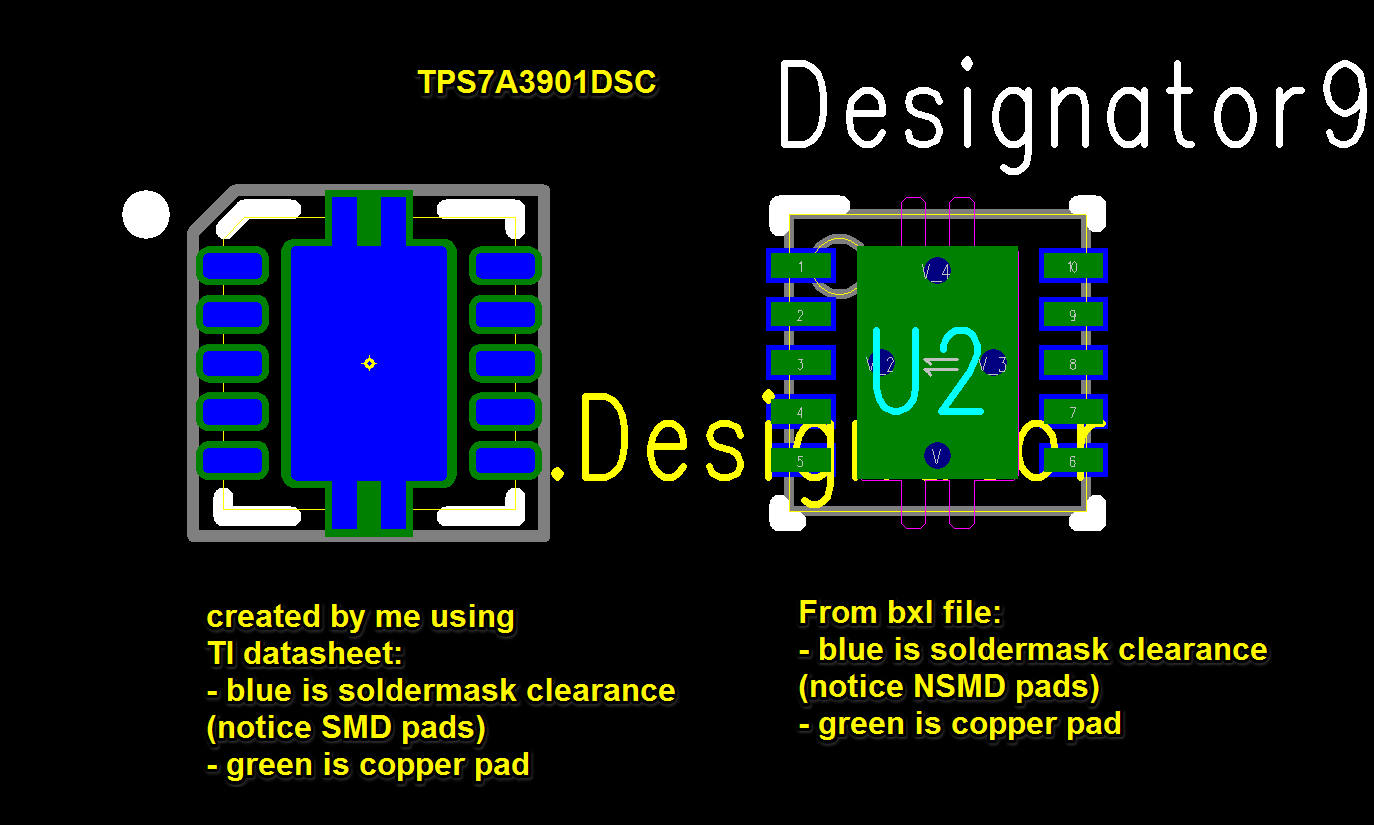

An one example, the footprint from the bxl file shows the pads as NSMD whereas in the TI datasheet, the pads are SMD as we discussed earlier in this blog.

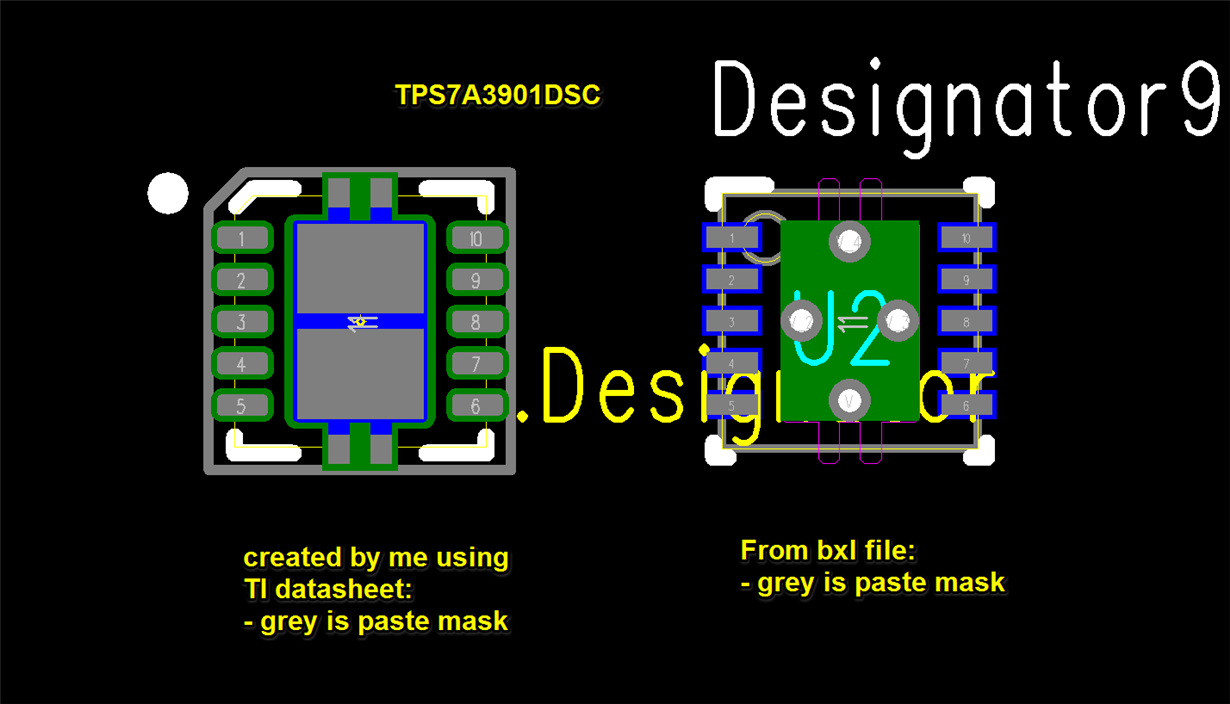

I have inserted a couple of screenshots.  Can you please explain why?

Thanks,

Agi

Hi Agi,

Thank you for pointing out the discrepancy. I have informed our team who generates the bxl files. The files are being reworked to more closely align with the mechanical data provided in the datasheet.

Very Respectfully,
Ryan
