WEBENCH® Tools/WEBENCH-POWER-DESIGNER: Schematic Generated by Webench dosen't show Junction.

Vishal Kakade

Part Number: WEBENCH-POWER-DESIGNER
Other Parts Discussed in Thread: UCC28C42, UCC28C45

Tool/software: WEBENCH® Design Tools

Hello Sir/Madam,

When we design something on webench, it generates a schematic for us. But one thing I noticed that it doesn't show a junction. How do I differentiate that which one is overlap and which one is an actual junction?

Please suggest me, how can I resolve this?

over 7 years ago

0 JohnTucker over 7 years ago

TI__Guru**** 191445 points

Vishal,

All of the Webench schematics I have seen do us a net tie dot. This may be an exception. What part number is associated with this schematic? have you seen this with more than one part number? If so what others?

0 Vishal Kakade over 7 years ago in reply to JohnTucker

Intellectual 930 points

Hello John,

I have seen this behaviour with all of TI's IC's on Webench.
I am Using UCC28C45, UCC28C42

0 JohnTucker over 7 years ago in reply to Vishal Kakade

TI__Guru**** 191445 points

Vishal,

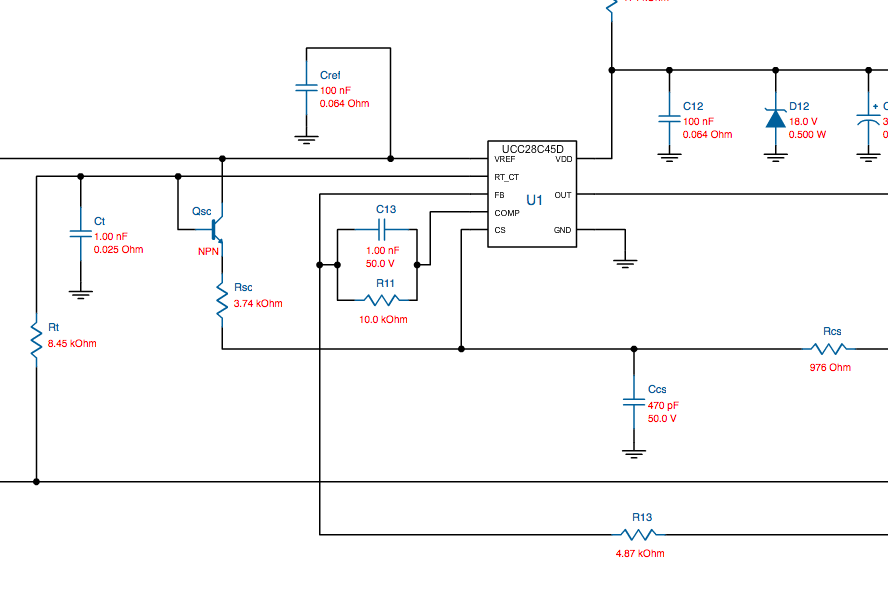

Maybe it is your web browser or OS. I cannot reproduce your issue:

0 Vishal Kakade over 7 years ago in reply to JohnTucker

Intellectual 930 points

Hello John,

Can you tell me, Which OS/Browser you are using?

Thanks
Vishal Kakade

0 JohnTucker over 7 years ago in reply to Vishal Kakade

TI__Guru**** 191445 points

Vishal,

Right now I have OS X Sierra and Firefox running on an 5k iMac. It is also displaying properly on my Windows 10 laptop using Microsoft Edge browser. What are you using?

0 Vishal Kakade over 7 years ago in reply to JohnTucker

Intellectual 930 points

Hello John,

I am using windows 7 on Google-Chrome.

Regards
Vishal Kakade

0 Vishal Kakade over 7 years ago in reply to JohnTucker

Intellectual 930 points

Hello John,

I have noticed that, it is not the issue with browser or OS. webench shows schematic with junctions. but when i clink on print report and it prints a pdf that time, all junction become invisible.

Regards
Vishal kakade
