LMR14206: Soft Start requirement

Maharajan Maruthupandi

Part Number: LMR14206

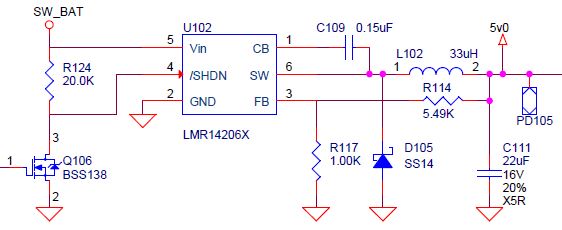

I am using LMR14206XMK/NOPB in our design. I analyse the inrush requirement for my design. I am driving the /SHDN pin as in the below schematic. Could you please let me know that how to calculate the rise time/start up time of the output voltage for my circuit? Because I couldn't get the answer from the datasheet.

SW_BAT - 8V-12V

Regards

Maharajan

over 7 years ago

0 Frank De Stasi over 7 years ago

TI__Guru 72355 points

The typical soft start time is about 200us.
This time can be increased with a capacitor on the SHDN pin.
Please see page 8 of the data sheet

0 Maharajan Maruthupandi over 7 years ago in reply to Frank De Stasi

Prodigy 80 points

Thanks for the response.

I couldn't get the 200us spec from datasheet. Whether this is the time to ramp up to 5V as per my design?

Regards
Maharajan

0 Frank De Stasi over 7 years ago in reply to Maharajan Maruthupandi

TI__Guru 72355 points

With 5Vout it may be something like 300us.
