TPS4H160-Q1: CS and nFault Delay

Hello Michael,

what kind of data you are looking for? is it ATE data or bench test data? I have collected this data a while ago for CS response to load in both cases oveload and short to GND. Attached is the avialble data.

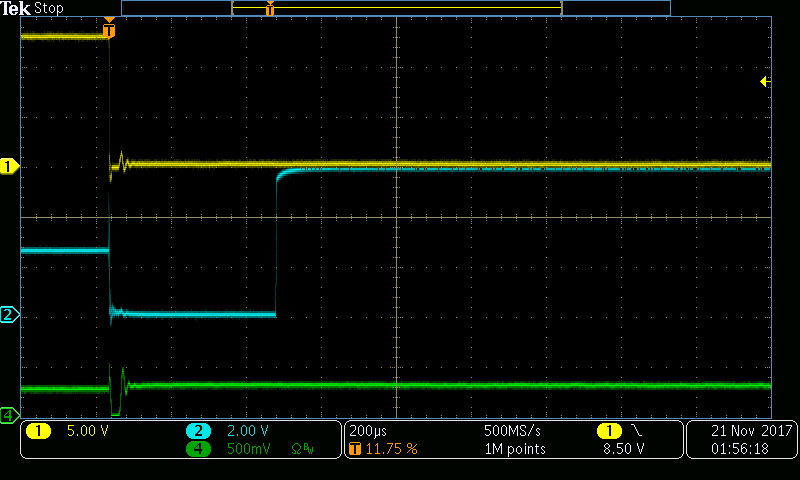

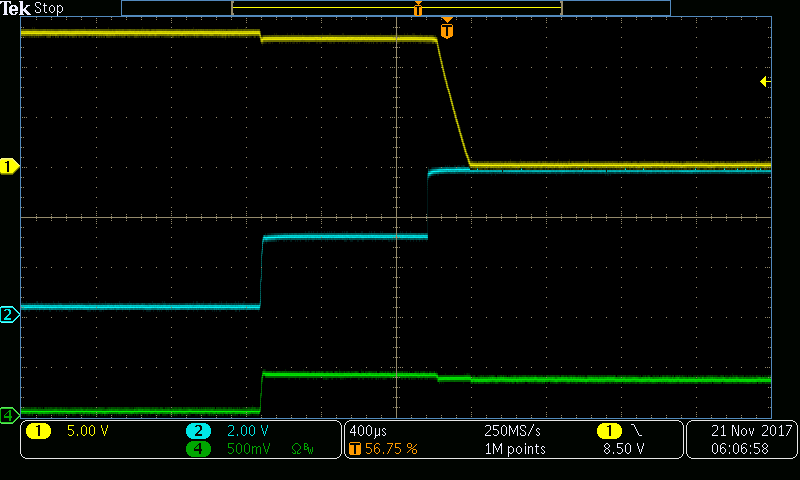

Scope channels: CH1 = VOUT, CH2 = CS and CH4 = load current.

Regards

Hi Mahmoud,

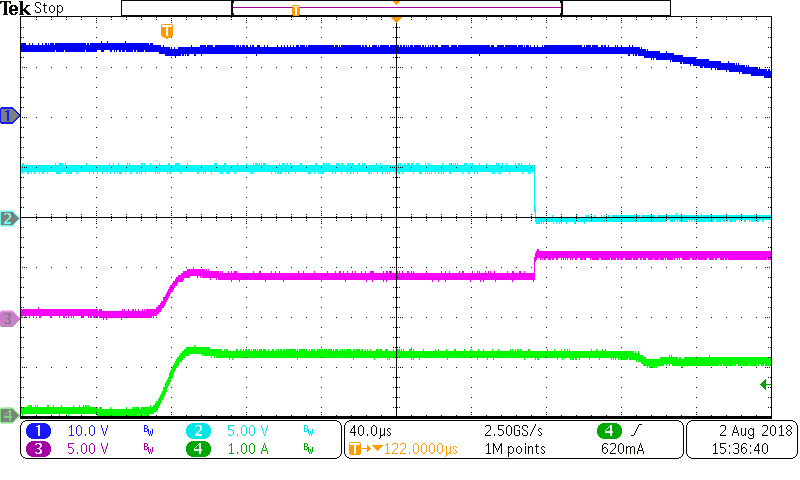

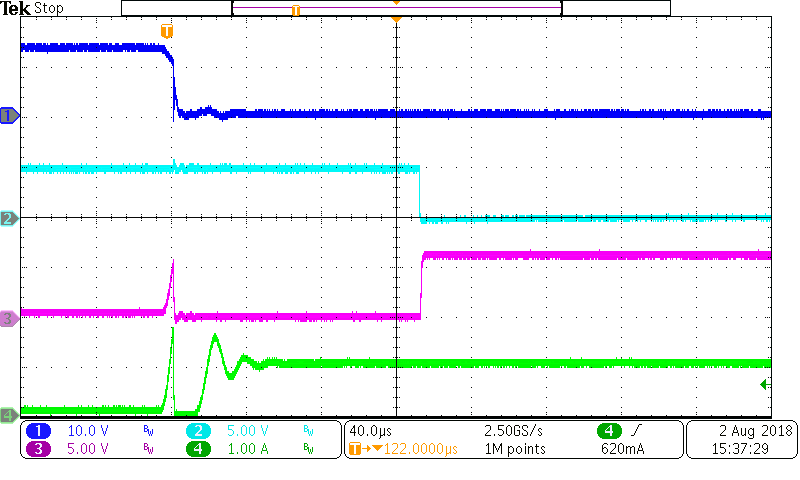

Thanks. I find it in other thread. But it is not what I need. Actually customer wants to know CH4->CH2 delay time in the picture above. And CH4->nFault delay time period, too.

One more question about the picture1. Why is there a current when the VOUT=0? Is it a different experiment?

Michael

Hi Michael,

I need to order parts B version because I only have A version at this time. The measurment will happen next week. Would you please explain CH4>CH2?
When the device is in overload condition i.e short to GND. The device still regulates the current at the current limit set.
Please expect some delay 3 to 4 business days for the data.

Regards
