LM1117: Ground Current vs Load

Hirotsugu Kobayashi

Mastermind 9540 points

Part Number: LM1117

Hi, team.

Is there a graph of the quiescent current and load current of the LM1117?

Best Regards,

over 7 years ago

0 Ryan Eslinger over 7 years ago

TI__Guru 55940 points

Hi Hirotsugu,

I am not aware of a curve showing ground current versus load current for LM1117. Please allow me a few days to generate one for you.

Very Respectfully,
Ryan

0 Hirotsugu Kobayashi over 7 years ago in reply to Ryan Eslinger

Mastermind 9540 points

Hi, Ryan,

OK, I will wait for your data.

Best Regards,

0 Ryan Eslinger over 7 years ago in reply to Hirotsugu Kobayashi

TI__Guru 55940 points

Hi Hirotsugu,

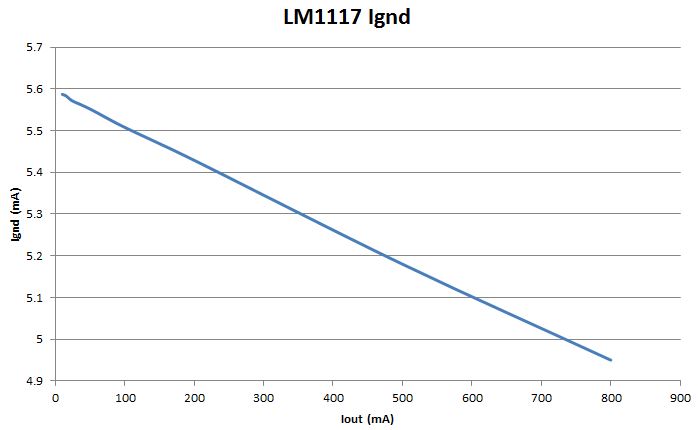

I received the linear regulators today and was able to measure Ignd vs Iout:

Very Respectfully,

Ryan
